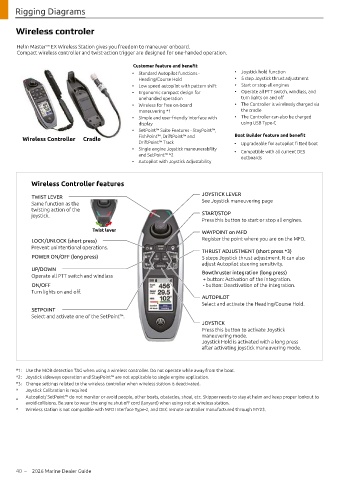

Rigging Diagrams

Wireless controler

Helm Master™ EX Wireless Station gives you freedom to maneuver onboard.
Compact wireless controller and twist-action trigger are designed for one-handed operation.

Customer feature and benefit
• Standard Autopilot functions - • Joystick hold function
Heading/Course Hold • 5 step Joystick thrust adjustment
• Low speed autopilot with pattern shift • Start or stop all engines
• Ergonomic compact design for • Operate all PTT switch, windlass, and
onehanded operation turn lights on and off
• Wireless for free on-board • The Controller is wirelessly charged via
maneuvering *1 the cradle
• Simple and user-friendly interface with • The Controller can also be charged
display using USB Type-C
• SetPoint™ Suite Features - StayPoint™,
Wireless Controller Cradle FishPoint™, DriftPoint™ and Boat Builder feature and benefit
DriftPoint™ Track • Upgradeable for autopilot fi tted boat
• Single engine Joystick maneuverability • Compatible with all current DES
and SetPoint™ *2 outboards
• Autopilot with Joystick Adjustability

Wireless Controller features

JOYSTICK LEVER
TWIST LEVER
Same function as the See Joystick maneuvering page
twisting action of the
joystick. START/STOP
Press this button to start or stop all engines.
Twist lever WAYPOINT on MFD
LOCK/UNLOCK (short press) Register the point where you are on the MFD.
Prevent unintentional operations.
THRUST ADJUSTMENT (short press *3)
POWER ON/OFF (long press) 5 steps Joystick thrust adjustment. It can also
adjust Autopilot steering sensitivity.
UP/DOWN Bowthruster integration (long press)
Operate all PTT switch and windlass
+ button: Activation of the integration.
ON/OFF - button: Deactivation of the integration.
Turn lights on and off.
AUTOPILOT
Select and activate the Heading/Course Hold.
SETPOINT
Select and activate one of the SetPoint™.
JOYSTICK
Press this button to activate Joystick
maneuvering mode.
Joystick Hold is activated with a long press
after activating joystick maneuvering mode.

*1: Use the MOB detection TAG when using a wireless controller. Do not operate while away from the boat.
*2: Joystick sideways operation and StayPoint™ are not applicable to single engine application.
*3: Change settings related to the wireless controller when wireless station is deactivated.
* Joystick Calibration is required
Autopilot/ SetPoint™ do not monitor or avoid people, other boats, obstacles, shoal, etc. Skipper needs to stay at helm and keep proper lookout to
*
avoid collisions. Be sure to wear the engine shut-off cord (lanyard) when using not at wireless station.
* Wireless station is not compatible with MFD Interface Type-2, and DEC remote controller manufactured through MY23.
