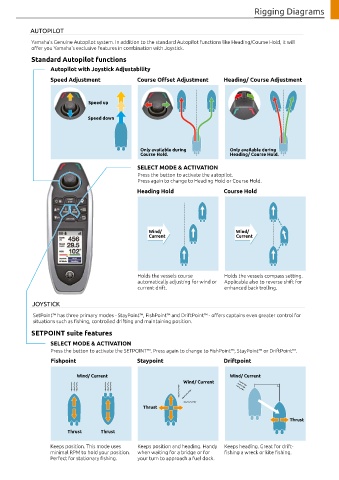

Rigging Diagrams

AUTOPILOT
Yamaha's Genuine Autopilot system. In addition to the standard Autopilot functions like Heading/Course Hold, it will
offer you Yamaha's exclusive features in combination with Joystick.
Standard Autopilot functions
Autopilot with Joystick Adjustability

Speed Adjustment Course Offset Adjustment Heading/ Course Adjustment

Speed up

Speed down

Only available during Only available during
Course Hold. Heading/ Course Hold.

SELECT MODE & ACTIVATION
Press the button to activate the autopilot.
Press again to change to Heading Hold or Course Hold.
Heading Hold Course Hold

Wind/ Wind/
Current Current

Holds the vessels course Holds the vessels compass setting.
automatically adjusting for wind or Applicable also to reverse shift for
current drift. enhanced back trolling.

JOYSTICK
SetPoint™ has three primary modes - StayPoint™, FishPoint™ and DriftPoint™ - offers captains even greater control for
situations such as fishing, controlled drifting and maintaining position.
SETPOINT suite features
SELECT MODE & ACTIVATION
Press the button to activate the SETPOINT™. Press again to change to FishPoint™, StayPoint™ or DriftPoint™.
Fishpoint Staypoint Driftpoint

Wind/ Current Wind/ Current
Wind/ Current

Thrust
Thrust

Thrust Thrust

Keeps position. This mode uses Keeps position and heading. Handy Keeps heading. Great for drift-
minimal RPM to hold your position. when waiting for a bridge or for fishing a wreck or kite fishing.
Perfect for stationary fishing. your turn to approach a fuel dock.
