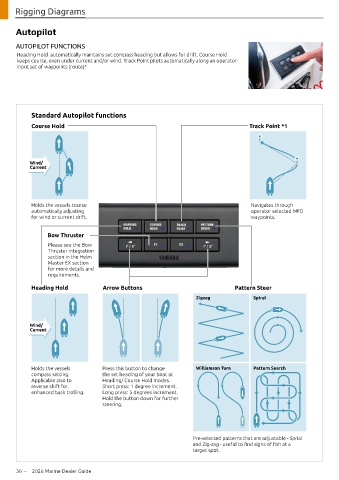

Rigging Diagrams

Autopilot

AUTOPILOT FUNCTIONS
Heading Hold automatically maintains set compass heading but allows for drift. Course Hold
keeps course, even under current and/or wind. Track Point pilots automatically along an operator-
input set of waypoints (route)*

Standard Autopilot functions

Course Hold Track Point *1

Wind/
Current

Holds the vessels course Navigates through
automatically adjusting operator selected MFD
for wind or current drift. waypoints.

Bow Thruster
Please see the Bow
Thruster integration
section in the Helm
Master EX section
for more details and
requirements.
Heading Hold Arrow Buttons Pattern Steer

Zigzag Spiral

Wind/
Current

Holds the vessels Press this button to change Williamson Turn Pattern Search
compass setting. the set heading of your boat at
Applicable also to Heading/ Course Hold modes.
reverse shift for Short press: 1 degree increment.
enhanced back trolling. Long press: 5 degrees increment.
Hold the button down for further
steering.

Pre-selected patterns that are adjustable - Sprial
and Zig-zag - useful to find signs of fish at a
target spot.
