Rigging Diagrams

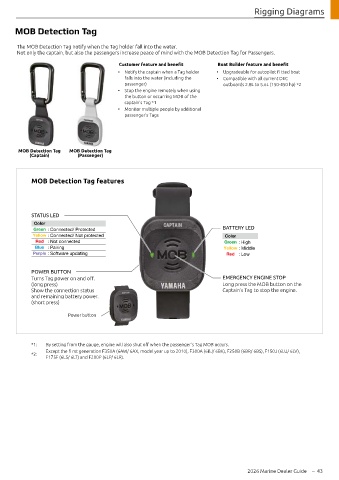

MOB Detection Tag

The MOB Detection Tag notify when the Tag holder fall into the water.
Not only the captain, but also the passengers increase peace of mind with the MOB Detection Tag for Passengers.

Customer feature and benefit Boat Builder feature and benefit
• Notify the captain when a Tag holder • Upgradeable for autopilot fi tted boat
falls into the water (including the • Compatible with all current DEC
passenger) outboards 2.8L to 5.6L (150-450 hp) *2
• Stop the engine remotely when using
the button or occurring MOB of the
captain's Tag *1
• Monitor multiple people by additional
passenger's Tags

MOB Detection Tag MOB Detection Tag
(Captain) (Passenger)

MOB Detection Tag features

STATUS LED

BATTERY LED

POWER BUTTON
Turns Tag power on and off. EMERGENCY ENGINE STOP
(long press) Long press the MOB button on the
Show the connection status Captain’s Tag to stop the engine.
and remaining battery power.
(short press)
Power button

*1: By setting from the gauge, engine will also shut off when the passenger's Tag MOB occurs.
Except the fi rst generation F350A (6AW/ 6AX, model year up to 2010), F300A (6BJ/ 6BK), F250B (6BR/ 6BS), F150J (6LU/ 6LV),
*2:
F175F (6LS/ 6LT) and F200P (6LP/ 6LR).

2026 Marine Dealer Guide – 43
