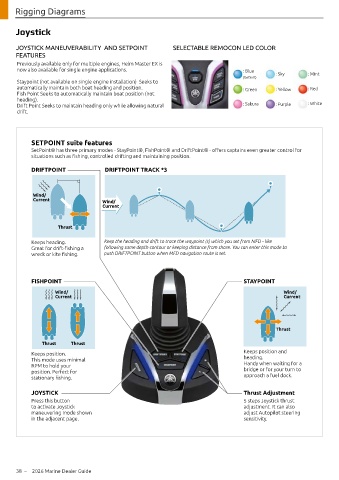

Rigging Diagrams

Joystick

JOYSTICK MANEUVERABILITY AND SETPOINT SELECTABLE REMOCON LED COLOR
FEATURES
Previously available only for multiple engines, Helm Master EX is
now also available for single engine applications. : Blue
(Default) : Sky : Mint
Staypoint (not available on single engine installation) Seeks to
automatically maintain both boat heading and position. : Green : Yellow : Red
Fish Point Seeks to automatically maintain boat position (not
heading).
Drift Point Seeks to maintain heading only while allowing natural : Sakura : Purple : White
drift.

SETPOINT suite features
SetPoint® has three primary modes - StayPoint®, FishPoint® and DriftPoint® - offers captains even greater control for
situations such as fishing, controlled drifting and maintaining position.
DRIFTPOINT DRIFTPOINT TRACK *3

Wind/
Current Wind/
Current

Thrust

Keeps heading. Keep the heading and drift to trace the waypoint (s) which you set from MFD - like
Great for drift-fishing a following same depth contour or keeping distance from shore. You can enter this mode to
wreck or kite fishing. push DRIFTPOINT button when MFD navigation route is set.

FISHPOINT STAYPOINT
Wind/ Wind/
Current Current

Thrust

Thrust Thrust
Keeps position. Keeps position and
This mode uses minimal heading.
RPM to hold your Handy when waiting for a
position. Perfect for bridge or for your turn to
stationary fishing. approach a fuel dock.

JOYSTICK Thrust Adjustment
Press this button 5 steps Joystick thrust
to activate Joystick adjustment. It can also
maneuvering mode shown adjust Autopilot steering
in the adjacent page. sensitivity.
