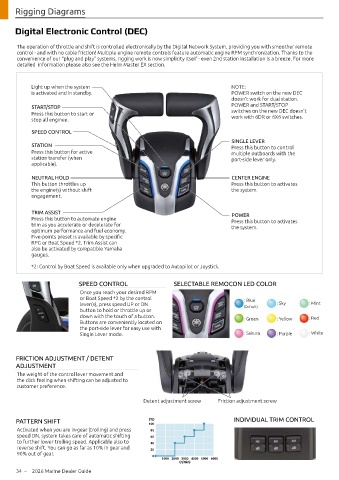

Rigging Diagrams

Digital Electronic Control (DEC)

The operation of throttle and shift is controlled electronically by the Digital Network System, providing you with smoother remote
control - and with no cable friction! Multiple engine remote controls feature automatic engine RPM synchronization. Thanks to the
convenience of our “plug and play” systems, rigging work is now simplicity itself - even 2nd station installation is a breeze. For more
detailed information please also see the Helm Master EX section.

Light up when the system NOTE:
is activated and in standby. POWER switch on the new DEC
doesn’t work for dual station.
START/STOP POWER and START/STOP
Press this button to start or switches on the new DEC doesn’t
work with 6DR or 6X6 switches.
stop all enginee.
SPEED CONTROL
SINGLE LEVER
STATION Press this button to control
Press this button for active multiple outboards with the
station transfer (when port-side lever only.
applicable).

NEUTRAL HOLD CENTER ENGINE
This button throttles up Press this button to activates
the engine(s) without shift the system.
engagement.

TRIM ASSIST POWER
Press this button to automate engine Press this button to activates
trim as you accelerate or decelerate for the system.
optimum performance and fuel economy.
Five-points preset is available by specific
RPG or Boat Speed *2. Trim Assist can
also be activated by compatible Yamaha
gauges.

*2: Control by Boat Speed is available only when upgraded to Autopilot or Joystick.

SPEED CONTROL SELECTABLE REMOCON LED COLOR
Once you reach your desired RPM
or Boat Speed *2 by the control : Blue
lever(s), press speed UP or DN (Default) : Sky : Mint
button to hold or throttle up or
down with the touch of a button. : Green : Yellow : Red
Buttons are conveniently located on
the port-side lever for easy use with
Single Lever mode. : Sakura : Purple : White

FRICTION ADJUSTMENT / DETENT
ADJUSTMENT
The weight of the control lever movement and
the click feeling when shifting can be adjusted to
customer preference.

Detent adjustment screw Friction adjustment screw

(%)
PATTERN SHIFT 100 INDIVIDUAL TRIM CONTROL
Activated when you are in-gear (trolling) and press 80
speed DN, system takes care of automatic shifting 60
to further lower trolling speed. Applicable also to 40
reverse shift. You can go as far as 10% in gear and 20
90% out of gear.
0
1000 2000 3000 4000 5000 6000
(r/min)
