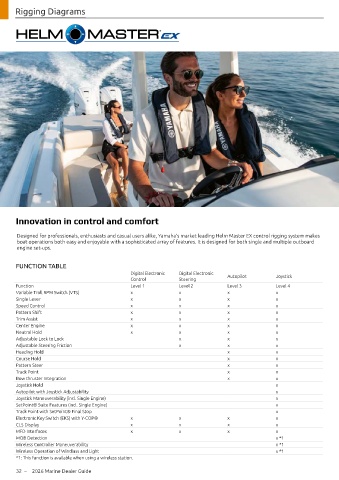

Rigging Diagrams

Innovation in control and comfort

Designed for professionals, enthusiasts and casual users alike, Yamaha’s market leading Helm Master EX control rigging system makes
boat operations both easy and enjoyable with a sophisticated array of features. It is designed for both single and multiple outboard
engine set-ups.

FUNCTION TABLE
Digital Electronic Digital Electronic
Control Steering Autopilot Joystick
Function Level 1 Level 2 Level 3 Level 4
Variable Troll RPM Switch (VTS) x x x x
Single Lever x x x x
Speed Control x x x x
Pattern Shift x x x x
Trim Assist x x x x
Center Engine x x x x
Neutral Hold x x x x
Adjustable Lock to Lock x x x
Adjustable Steering Friction x x x
Heading Hold x x
Course Hold x x
Pattern Steer x x
Track Point x x
Bow thruster Integration x x
Joystick Hold x
Autopilot with Joystick Adjustability x
Joystick Maneuverability (incl. Single Engine) x
SetPoint® Suite Features (incl. Single Engine) x
Track Point with SetPoint® Final Stop x
Electronic Key Switch (EKS) with Y-COP® x x x x
CL5 Display x x x x
MFD Interfaces x x x x
MOB Detection x *1
Wireless Controller Maneuverability x *1
Wireless Operation of Windlass and Light x *1
*1: This function is available when using a wireless station.
