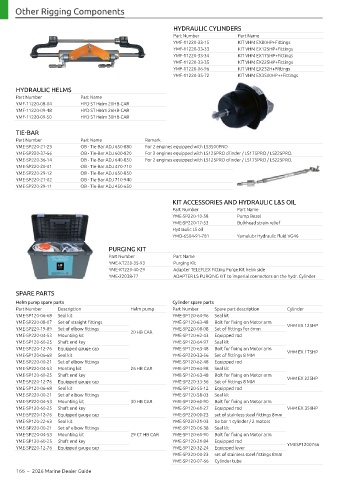

Other Rigging Components

HYDRAULIC CYLINDERS
Part Number Part Name
YMF-11220-33-15 KIT VHM EX80HP+Fittings
YMF-11220-33-33 KIT VHM EX125HP+Fittings
YMF-11220-33-34 KIT VHM EX175HP+Fittings
YMF-11220-33-35 KIT VHM EX225HP+Fittings
YMF-11220-06-96 KIT VHM EX232H+Fittings
YMF-11220-35-72 KIT VHM EX3500HP++Fittings

HYDRAULIC HELMS
Part Number Part Name
YMF-11220-08-04 HYD ST Helm 20HB-CAR
YMF-11220-09-48 HYD ST Helm 26HB-CAR
YMF-11220-09-50 HYD ST Helm 30HB-CAR

TIE-BAR
Part Number Part Name Remark
YME-SP220-21-23 OB - Tie-Bar ADJ 650-880 For 2 engines equipped with LS3500PRO
YME-SP220-37-56 OB - Tie-Bar ADJ 600-820 For 2 engines equipped with LS125PRO cilinder / LS175PRO / LS225PRO.
YME-SP220-36-14 OB - Tie-Bar ADJ 640-850 For 2 engines equipped with LS125PRO cilinder / LS175PRO / LS225PRO.
YME-SP220-20-41 OB - Tie-Bar ADJ 470-710
YME-SP220-29-12 OB - Tie-Bar ADJ 650-850
YME-SP220-21-02 OB - Tie-Bar ADJ 710-940
YME-SP220-29-11 OB - Tie-Bar ADJ 450-650

KIT ACCESSORIES AND HYDRAULIC L&S OIL
Part Number Part Name
YME-SP220-10-58 Pump Bezel
YME-SP220-17-53 Bulkhead strain relief
Hydraulic LS oil
YMD-6504-91-781 Yamalubr Hydraulic fluid VG46

PURGING KIT
Part Number Part Name
YME-KT220-35-93 Purging Kit
YME-KT220-40-29 Adapter TELEFLEX Fitting Purge Kit helm side
YME-22038-77 ADAPTER LS PURGING KIT to imperial connectors on the hydr. Cylinder

SPARE PARTS
Helm pump spare parts Cylinder spare parts
Part Number Description Helm pump Part Number Spare part description Cylinder
YME-SP120-06-68 Seal kit YME-SP120-64-96 Seal kit
YME-SP220-08-07 Set of straight fittings YME-SP120-63-48 Bolt for fixing on Motor arm VHM EX 125HP
YME-SP220-19-89 Set of elbow fittings 20 HB CAR YME-SP220-08-08 Set of fittings for 6mm
YME-SP220-04-53 Mounting kit YME-SP120-62-43 Equipped rod
YME-SP120-60-25 Shaft end key YME-SP120-64-97 Seal kit
YME-SP220-12-76 Equipped gauge cap YME-SP120-63-48 Bolt for fixing on Motor arm VHM EX 175HP
YME-SP120-06-68 Seal kit YME-SP220-33-56 Set of fittings 8 MM
YME-SP220-00-21 Set of elbow fittings YME-SP120-62-48 Equipped rod
YME-SP220-04-53 Monting kit 26 HB CAR YME-SP120-64-98 Seal kit
YME-SP120-60-25 Shaft end key YME-SP120-63-48 Bolt for fixing on Motor arm
YME-SP220-12-76 Equipped gauge cap YME-SP220-33-56 Set of fittings 8 MM VHM EX 225HP
YME-SP120-06-68 Seal kit YME-SP120-55-12 Equipped rod
YME-SP220-00-21 Set of elbow fittings YME-SP120-58-03 Seal kit
YME-SP220-04-53 Mounting kit 30 HB CAR YME-SP120-60-90 Bolt for fixing on Motor arm
YME-SP120-60-25 Shaft end key YME-SP120-61-27 Equipped rod VHM EX 350HP
YME-SP220-12-76 Equipped gauge cap YME-SP220-00-23 set of stainless steel fittings 8mm
YME-SP120-22-63 Seal kit YME-SP220-21-03 tie bar 1 cylinder / 2 motors
YME-SP220-00-21 Set of elbow fittings YME-SP120-06-38 Seal kit
YME-SP220-04-53 Mounting kit 29 CT HB CAR YME-SP120-60-90 Bolt for fixing on Motor arm
YME-SP120-60-25 Shaft end key YME-SP120-21-84 Equipped rod
YME-SP220-12-76 Equipped gauge cap YME-SP120-32-24 Equipped lever YMESP1200766
YME-SP220-00-23 set of stainless steel fittings 8mm
YME-SP120-07-66 Cylinder tube
