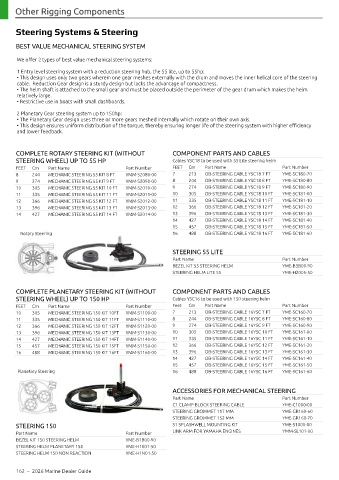

Page 164 - Yamaha Marine Zubehoer 2026

Other Rigging Components

Steering Systems & Steering

BEST VALUE MECHANICAL STEERING SYSTEM

We offer 2 types of best value mechanical steering systems:

1 Entry level steering system with a reduction steering hub, the 55 lite, up to 55hp:
• This design uses only two gears wherein one gear meshes externally with the drum and moves the inner helical core of the steering
cable. Reduction Gear design is a sturdy design but lacks the advantage of compactness.
• The helm shaft is attached to the small gear and must be placed outside the perimeter of the gear drum which makes the helm
relatively large.
• Restrictive use in boats with small dashboards.

2 Planetary Gear steering system up to 150hp:
• The Planetary Gear design uses three or more gears meshed internally which rotate on their own axis.
• This design ensures uniform distribution of the torque, thereby ensuring longer life of the steering system with higher efficiency
and lower feedback.

COMPLETE ROTARY STEERING KIT (WITHOUT COMPONENT PARTS AND CABLES
STEERING WHEEL) UP TO 55 HP Cables YSC18 to be used with 55 Lite steering helm
FEET Cm Part Name Part Number FEET Cm Part Name Part Number
8 244 MECHANIC STEERING 55 KIT 8 FT YMM-S2080-00 7 213 OB-STEERING CABLE YSC18 7 FT YME-SC180-70
9 274 MECHANIC STEERING 55 KIT 9 FT YMM-S2090-00 8 244 OB-STEERING CABLE YSC18 8 FT YME-SC180-80
10 305 MECHANIC STEERING 55 KIT 10 FT YMM-S2010-00 9 274 OB-STEERING CABLE YSC18 9 FT YME-SC180-90
11 335 MECHANIC STEERING 55 KIT 11 FT YMM-S2011-00 10 305 OB-STEERING CABLE YSC18 10 FT YME-SC181-00
12 366 MECHANIC STEERING 55 KIT 12 FT YMM-S2012-00 11 335 OB-STEERING CABLE YSC18 11 FT YME-SC181-10
13 396 MECHANIC STEERING 55 KIT 13 FT YMM-S2013-00 12 366 OB-STEERING CABLE YSC18 12 FT YME-SC181-20
14 427 MECHANIC STEERING 55 KIT 14 FT YMM-S2014-00 13 396 OB-STEERING CABLE YSC18 13 FT YME-SC181-30
14 427 OB-STEERING CABLE YSC18 14 FT YME-SC181-40
15 457 OB-STEERING CABLE YSC18 15 FT YME-SC181-50
Rotary Steering 16 488 OB-STEERING CABLE YSC18 16 FT YME-SC181-60

STEERING 55 LITE
Part Name Part Number
BEZEL KIT 55 STEERING HELM YME-B3B00-90
STEERING HELM LITE 55 YME-H2005-50

COMPLETE PLANETARY STEERING KIT (WITHOUT COMPONENT PARTS AND CABLES
STEERING WHEEL) UP TO 150 HP Cables YSC16 to be used with 150 steering helm
FEET Cm Part Name Part Number Feet Cm Part Name Part Number
10 305 MECHANIC STEERING 150 KIT 10FT YMM-S1100-00 7 213 OB-STEERING CABLE 16YSC 7 FT YME-SC160-70
11 335 MECHANIC STEERING 150 KIT 11FT YMM-S1110-00 8 244 OB-STEERING CABLE 16YSC 8 FT YME-SC160-80
12 366 MECHANIC STEERING 150 KIT 12FT YMM-S1120-00 9 274 OB-STEERING CABLE 16YSC 9 FT YME-SC160-90
13 396 MECHANIC STEERING 150 KIT 13FT YMM-S1130-00 10 305 OB-STEERING CABLE 16YSC 10 FT YME-SC161-00
14 427 MECHANIC STEERING 150 KIT 14FT YMM-S1140-00 11 335 OB-STEERING CABLE 16YSC 11 FT YME-SC161-10
15 457 MECHANIC STEERING 150 KIT 15FT YMM-S1150-00 12 366 OB-STEERING CABLE 16YSC 12 FT YME-SC161-20
16 488 MECHANIC STEERING 150 KIT 16FT YMM-S1160-00 13 396 OB-STEERING CABLE 16YSC 13 FT YME-SC161-30
14 427 OB-STEERING CABLE 16YSC 14 FT YME-SC161-40
15 457 OB-STEERING CABLE 16YSC 15 FT YME-SC161-50
Planetary Steering 16 488 OB-STEERING CABLE 16YSC 16 FT YME-SC161-60

ACCESSORIES FOR MECHANICAL STEERING
Part Name Part Number
C1 CLAMP BLOCK STEERING CABLE YME-C1000-00
STEERING GROMMET 117 MM YME-GR160-60
STEERING GROMMET 152 MM YME-GR160-70
STEERING 150 S1 SPLASHWELL MOUNTING KIT YME-S1000-00
Part Name Part Number LINK ARM FOR YAMAHA ENGINES YMM-SL101-00
BEZEL KIT 150 STEERING HELM YME-B1B00-90
STEERING HELM PLANETARY 150 YME-H1001-50
STEERING HELM 150 NON REACTION YME-H1N01-50

162 – 2026 Marine Dealer Guide
