Rigging Diagrams

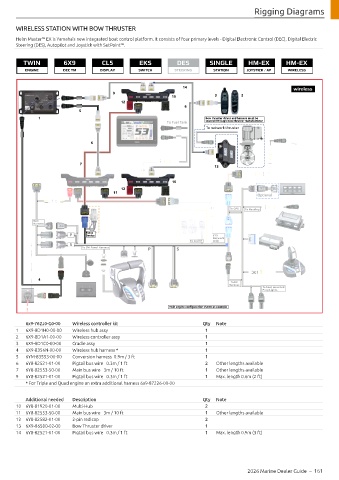

WIRELESS STATION WITH BOW THRUSTER

Helm Master™ EX is Yamaha’s new integrated boat control platform. It consists of four primary levels - Digital Electronic Control (DEC), Digital Electric
Steering (DES), Autopilot and Joystick with SetPoint™.

SINGLE 6X9 CL5 EKS DES SINGLE HM-EX HM-EX
TWIN
ENGINE DEC TM DISPLAY SWITCH STEERING STATION JOYSTICK / AP WIRELESS
ENGINE

14 wireless
9
10 3 2
12
6
5
1 Bow thruster driver and harness must be Do not use! bt.driver
To Fuel Tank sourced through bow thruster manufacturer
To network thruster

6

7
13
10
12
11
Optional
To GPS To Heading

Rem
Harness
xtr
P E Extra a e 6Y9
Device
Devic
Network
To 2nd ST Only
S
To SW Panel Harness P S

4
To RC
Harness
To boat mounted
Prop Lights
Twin engine configuration shown as example

6x9-762J0-G0-00 Wireless controller kit Qty Note
1 6X9-8D1H0-00-00 Wireless hub assy 1
2 6X9-8D1A1-00-00 Wireless controller assy 1
3 6X9-8D1C0-00-00 Cradle assy 1
4 6X9-8356N-00-00 Wireless hub harness * 1
5 6YM-83553-00-00 Conversion harness 0.9m / 3 ft 1
6 6Y8-82521-01-00 Pigtail bus wire 0.3m / 1 ft 2 Other lengths available
7 6Y8-82553-50-00 Main bus wire 3m / 10 ft 1 Other lengths available
9 6Y8-82521-01-00 Pigtail bus wire 0.3m / 1 ft 1 Max. length 0.6m (2 ft)
* For Triple and Quad engine an extra additional harness 6x9-87226-00-00

Additional needed Description Qty Note
10 6Y8-81920-01-00 Multi-Hub 2
11 6Y8-82553-50-00 Main bus wire 3m / 10 ft 1 Other lengths available
12 6Y8-82582-01-00 2-pin red cap 2
13 6X9-86500-02-00 Bow Thruster driver 1
14 6Y8-82521-01-00 Pigtail bus wire 0.3m / 1 ft 1 Max. length 0.9m (3 ft)

2026 Marine Dealer Guide – 161
