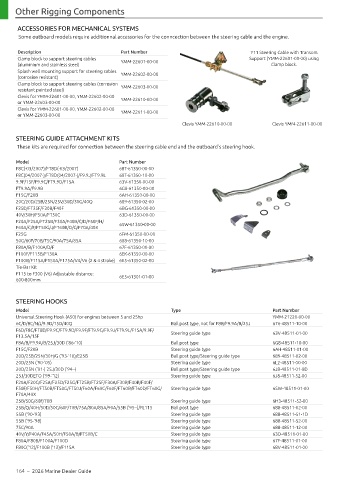

Page 166 - Yamaha Marine Zubehoer 2026

Other Rigging Components

ACCESSORIES FOR MECHANICAL SYSTEMS
Some outboard models require additionnal accessories for the conncection between the steering cable and the engine.

Description Part Number Y11 Steering Cable with Transom
Clamp block to support steering cables YMM-22601-00-00 Support (YMM-22601-00-00) using
(aluminium and stainless steel) Clamp block.
Splash well mounting support for steering cables YMM-22602-00-00
(corrosion resistant)
Clamp block to support steering cables (corrosion YMM-22603-00-00
resistant painted steel)
Clevis for YMM-22601-00-00, YMM-22602-00-00
or YMM-22603-00-00 YMM-22610-00-00
Clevis for YMM-22601-00-00, YMM-22602-00-00
or YMM-22603-00-00 YMM-22611-00-00
Clevis YMM-22610-00-00 Clevis YMM-22611-00-00

STEERING GUIDE ATTACHMENT KITS
These kits are required for connection between the steering cable end and the outboard's steering hook.

Model Part Number
F8C(-03/2007)/FT8D(-03/2007) 68T-61350-00-00
F8C(04/2007-)/FT8D(04/2007-)/F9.9J/FT9.9L 68T-61350-10-00
9.9F/15F/F9.9C/FT9.9D/F15A 63V-61350-00-00
FT9.9A/F9.9B 6G8-61350-00-00
F15C/F20B 6AH-61350-00-00
20C/20D/25B/25N/25V/30D/30G/40Q 689-61350-02-00
F25D/FT25F/F30B/F40F 6BG-61350-00-00
40V/50H/F50A/FT50C 63D-61350-00-00
F20A/F25A/FT25B/F30A/F40B/C/D/F50F/H/
F60A/C/F/FT50G/J/FT60B/D/G/F70A/40X 65W-61350-00-00
F25G 6FM-61350-00-00
50G/60F/70B/75C/90A/75A/85A 688-61350-10-00
F80A/B/F100A/D/F 67F-61350-00-00
F100F/F115B/F130A 6EK-61350-00-00
F100B/F115A/F150A/F175A/V4/V6 (2 & 4 stroke) 6E5-61350-02-00
Tie-Bar Kit
F115 to F300 (V6) Adjustable distance: 6E5-61301-01-00
600-800mm

STEERING HOOKS
Model Type Part Number
Universal Steering Hook (A50) for engines between 5 and 25hp YMM-21220-00-00
6C/D/8C/N/J/9.9D/15D/40Q Ball post type, not for F8B/F9.9A/B/25J 676-48511-10-00
F6D/F8C/FT8D/F9.9C/FT9.9D/F9.9F/FT9.9G/F9.9J/FT9.9L/F15A/9.9F/ Steering guide type 63V-48511-01-00
F13.5A/15F
F8A/B/F9.9A/B/25J/30D (‘86-’10) Ball post type 6G8-48511-10-00
F15C/F20B Steering guide type 6AH-48511-01-00
20D/25B/25N/30H/G (‘93-’10)/E25B Ball post type/Steering guide type 689-48511-02-00
20D/25N (‘90-’05) Steering guide type 6L2-48511-00-00
20D/25N (‘01-) 25J/30D (‘94--) Ball post type/Steering guide type 6J8-48511-01-8D
25J/30DETO (‘99-’12) Steering guide type 6J8-48511-52-00
F20A/F20G/F25A/F25D/F25G/FT25B/FT25F/F30A/F30B/F40B/F40F/
F50F/F50H/FT50B/FT50G/FT50J/F60A/F60C/F60F/FT60B/FT60D/FT60G/ Steering guide type 65W-48511-01-00
F70A/40X
25B/50G/60F/70B Steering guide type 6H3-48511-52-00
25B/Q/40H/50D/50G/60F/70B/75A/80A/85A/90A/55B (‘95--)/FL115 Ball post type 688-48511-02-00
55B (‘90-’93) Steering guide type 688-48511-51-1D
55B (‘95-’98) Steering guide type 688-48511-52-00
75C/90A Steering guide type 688-48511-12-00
40V/Y/F40A/F45A/50H/F50A/B/FT50B/C Steering guide type 63D-48511-01-00
F80A/F80B/F100A/F100D Steering guide type 67F-48511-01-00
F80C(‘12)/F100B (‘12)/F115A Steering guide type 68V-48511-01-00

164 – 2026 Marine Dealer Guide
