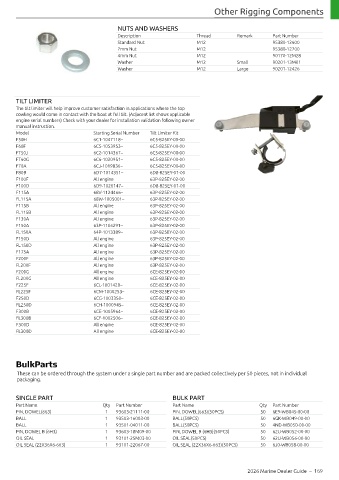

Page 171 - Yamaha Marine Zubehoer 2026

Other Rigging Components

NUTS AND WASHERS
Description Thread Remark Part Number
Standard Nut M12 95380-12600
7mm Nut M12 95380-12700
4mm Nut M12 90170-12M28
Washer M12 Small 90201-13M01
Washer M12 Large 90201-12426

TILT LIMITER
The tilt limiter will help improve customer satisfaction in applications where the top
cowling would come in contact with the boat at full tilt. (Adjacent list shows applicable
engine serial numbers) Check with your dealer for installation validation following owner
manual instruction.
Model Starting Serial Number Tilt Limiter Kit
F50H 6C1-1047118– 6C5-825EY-00-00
F60F 6C5-1053953– 6C5-825EY-00-00
FT50J 6C2-1014367– 6C5-825EY-00-00
FT60G 6C6-1020951– 6C5-825EY-00-00
F70A 6CJ-1019836– 6C5-825EY-00-00
F80B 6D7-1014351– 6D8-825EY-01-00
F100F All engine 63P-825EY-02-00
F100D 6D9-1020147– 6D8-825EY-01-00
F115A 68V-1124466– 63P-825EY-02-00
FL115A 68W-1005001– 63P-825EY-02-00
F115B All engine 63P-825EY-02-00
FL115B All engine 63P-825EY-02-00
F130A All engine 63P-825EY-02-00
F150A 63P-1106291– 63P-825EY-02-00
FL150A 64P-1013389– 63P-825EY-02-00
F150D All engine 63P-825EY-02-00
FL150D All engine 63P-825EY-02-00
F175A All engine 63P-825EY-02-00
F200F All engine 63P-825EY-02-00
FL200F All engine 63P-825EY-02-00
F200G All engine 6CE-825EY-02-00
FL200G All engine 6CE-825EY-02-00
F225F 6CL-1001428– 6CE-825EY-02-00
FL225F 6CM-1000253– 6CE-825EY-02-00
F250D 6CG-1003350– 6CE-825EY-02-00
FL250D 6CH-1000945– 6CE-825EY-02-00
F300B 6CE-1005964– 6CE-825EY-02-00
FL300B 6CF-1002506– 6CE-825EY-02-00
F300D All engine 6CE-825EY-02-00
FL300D All engine 6CE-825EY-02-00

BulkParts
These can be ordered through the system under a single part number and are packed collectively per 50 pieces, not in individual
packaging.

SINGLE PART BULK PART
Part Name Qty Part Number Part Name Qty Part Number
PIN, DOWEL(663) 1 93603-21111-00 PIN, DOWEL(663)(50PCS) 50 6E9-WB045-00-00
BALL 1 93503-16003-00 BALL(50PCS) 50 6GK-WB049-00-00
BALL 1 93501-04011-00 BALL(50PCS) 50 4ND-WB050-00-00
PIN, DOWEL B (6H3) 1 93603-18M09-00 PIN, DOWEL B (6H3)(50PCS) 50 62U-WB052-00-00
OIL SEAL 1 93101-25M03-00 OIL SEAL(50PCS) 50 62U-WB056-00-00
OIL SEAL (22X36X6-663) 1 93101-22067-00 OIL SEAL (22X36X6-663)(50PCS) 50 6J0-WB058-00-00

2026 Marine Dealer Guide – 169
