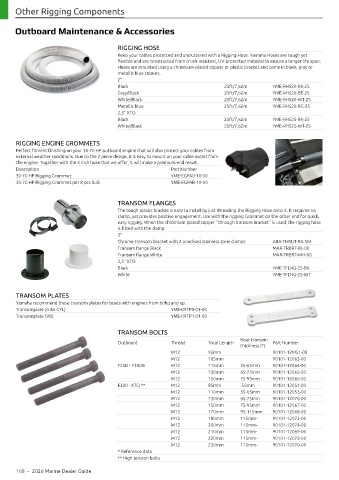

Page 170 - Yamaha Marine Zubehoer 2026

Other Rigging Components

Outboard Maintenance & Accessories

RIGGING HOSE
Keep your cables protected and uncluttered with a Rigging Hose. Yamaha Hoses are tough yet
flexible and are constructed from crush-resistant, UV-protected material to ensure a longer life span.
Hoses are mounted using a chromium-plated copper or plastic bracket and come in black, gray or
metallic blue colours.
2"
Black 25ft/7,62m YME-RHS20-BK-25
Gray/Black 25ft/7,62m YME-RHS20-BE-25
White/Black 25ft/7,62m YME-RHS20-WT-25
Metallic blue 25ft/7,62m YME-RHS20-BG-25
2,5" XTO
Black 25ft/7,62m YME-RHS25-BK-25
White/Black 25ft/7,62m YME-RHS25-WT-25

RIGGING ENGINE GROMMETS
Perfect fitment finishing on your 30-70 HP outboard engine that will also protect your cables from
external weather conditions. Due to the 2 piece design, it is easy to mount on your cable outlet from
the engine. Together with the 2 inch hose that we offer, it will make a premium end result.
Description Part Number
30-70 HP Rigging Grommet YME-EGPA0-10-00
30-70 HP Rigging Grommet per 8 pcs bulk YME-EGPAB-10-00

TRANSOM FLANGES
The tough plastic bracket is easy to install by just threading the Rigging Hose onto it. It requires no
clamp, yet provides positive engagement. Use with the rigging Grommet on the other end for quick,
easy rigging. When the chromium plated copper ''through transom bracket'' is used, the rigging hose
is fitted with the clamp.
2"
Chrome transom bracket with 2 anodised stainless steel clamps ABA-THRUT-RA-SM
Transom flange Black MAR-TRBRT-BL-00
Transom flange White MAR-TRBRT-WH-00
2,5" XTO
Black YME-TFLNG-25-BK
White YME-TFLNG-25-WT

TRANSOM PLATES
Yamaha recommend these transom plates for boats with engines from 60hp and up.
Transomplate (4 &6 CYL) YME-09TP0-01-00
Transomplate (V8) YME-09TP1-01-00

TRANSOM BOLTS
Boat transom
Outboard Thread Total Length Part Number
thickness (*)
M12 95mm 90101-12M51-00
M12 105mm 90101-12063-00
F25D - F300B M12 115mm 55-65mm 90101-12064-00
M12 130mm 65-75mm 90101-12065-00
M12 150mm 75-95mm 90101-12066-00
F300 - XTO ** M12 85mm -55mm 90101-12051-00
M12 110mm 55-65mm 90101-12053-00
M12 130mm 65-75mm 90101-12076-00
M12 150mm 75-95mm 90101-12067-00
M12 170mm 95-115mm 90101-12068-00
M12 180mm 115mm- 90101-12073-00
M12 200mm 115mm- 90101-12074-00
M12 210mm 115mm- 90101-12069-00
M12 220mm 115mm- 90101-12078-00
M12 230mm 115mm- 90101-12070-00
* Reference data
** High tension bolts
