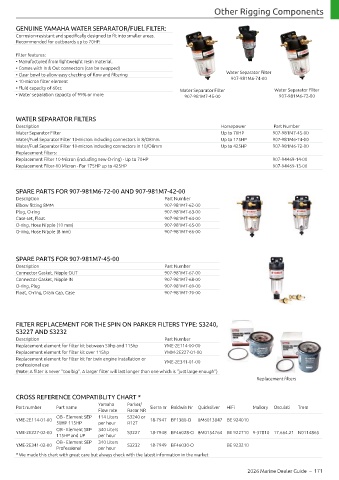

Page 173 - Yamaha Marine Zubehoer 2026

Other Rigging Components

GENUINE YAMAHA WATER SEPARATOR/FUEL FILTER:
Corrosion-resistant and specifically designed to fit into smaller areas.
Recommended for outboards up to 70HP.

Filter features:
• Manufactured from lightweight resin material.
• Comes with In & Out connectors (can be swapped)
• Clear bowl to allow easy checking of flow and filtering Water Separator Filter
• 10-micron filter element 907-981M6-74-00
• Fluid capacity of 60cc Water Separator Filter Water Separator Filter
• Water separation capacity of 99% or more 907-981M7-45-00 907-981M6-72-00

WATER SEPARATOR FILTERS
Description Horsepower Part Number
Water Separator Filter Up to 70HP 907-981M7-45-00
Water/Fuel Separator Filter 10-micron including connectors in 8/O8mm Up to 175HP 907-981M6-74-00
Water/Fuel Separator Filter 10-micron including connectors in 10/O8mm Up to 425HP 907-981M6-72-00
Replacement filters:
Replacement Filter 10-Micron (including new O-ring) - Up to 70HP 907-94469-14-00
Replacement Filter-10 Micron - For 175HP up to 425HP 907-94469-13-00

SPARE PARTS FOR 907-981M6-72-00 AND 907-981M7-42-00
Description Part Number
Elbow fitting 8MM 907-981M7-62-00
Plug, O-ring 907-981M7-63-00
Case set, Float 907-981M7-64-00
O-ring, Hose Nipple (10 mm) 907-981M7-65-00
O-ring, Hose Nipple (8 mm) 907-981M7-66-00

SPARE PARTS FOR 907-981M7-45-00
Description Part Number
Connector Gasket, Nipple OUT 907-981M7-67-00
Connector Gasket, Nipple IN 907-981M7-68-00
O-ring, Plug 907-981M7-69-00
Float, O-ring, Drain Cap, Case 907-981M7-70-00

FILTER REPLACEMENT FOR THE SPIN ON PARKER FILTERS TYPE: S3240,
S3227 AND S3232
Description Part Number
Replacement element for filter kit between 50hp and 115hp YME-2E114-00-00
Replacement element for filter kit over 115hp YMM-2E227-01-00
Replacement element for filter kit for twin engine installation or
professional use YME-2E341-01-00
(Note: A filter is never ''too big''. A larger filter will last longer than one which is ''just large enough'')
Replacement filters

CROSS REFERENCE COMPATIBLITY CHART *
Yamaha Parker/
Part number Part name Sierra nr Baldwin Nr Quicksilver HiFi Mallory Osculati Trem
Flow rate Racor NR
OB - Element SEP 114 Liters S3240 or
YME-2E114-01-00 18-7947 BF1380-O 8M6013847 BE 924010
50HP 115HP per hour R12T
OB - Element SEP 340 Liters
YME-2E227-02-00 S3227 18-7948 BF46028-O 8M0154764 BE 922710 9-37810 17.664.21 N0114865
115HP and UP per hour
OB - Element SEP 340 Liters
YME-2E341-02-00 S3232 18-7949 BF46030-O BE 923210
Professional per hour
* We made this chart with great care but always check with the latest information in the market
2026 Marine Dealer Guide – 171
