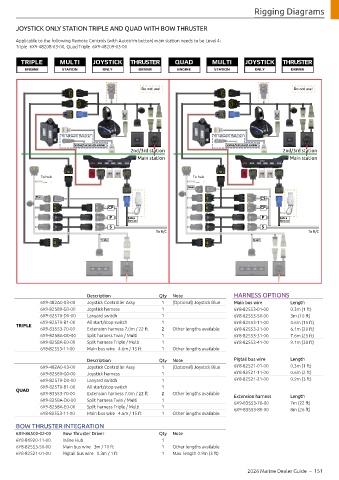

Rigging Diagrams


       JOYSTICK ONLY STATION TRIPLE AND QUAD WITH BOW THRUSTER

       Applicable to the following Remote Controls (with Autotrim button) main station needs to be Level 4:
       Triple  6X9-48208-03-00, Quad Triple  6X9-48209-03-00

        TRIPLE
                                                              QUAD
        SINGLE        MULTI       JOYSTICK     THRUSTER       SINGLE       MULTI       JOYSTICK     THRUSTER
          ENGINE
          ENGINE       STATION       ONLY         DRIVER       ENGINE       STATION        ONLY        DRIVER
                                                               ENGINE
                                                   Do not use!                                          Do not use!








                       To network thruster                                  To network thruster
                           Vetus/Sleipner/Lewmar                                 Vetus/Sleipner/Lewmar
                                               2nd/3rd station                                      2nd/3rd station
                                                 Main station                                          Main station


               To hub                                                To hub

                                                                   Main
              Main                                                                          CS
                                       CP                                                   CP
                                       P      Extra                                          P     Extra
                                              Device                                               Device
                                       S                                                     S
                                                        To R/C                                               To R/C
                                    Triple                                                Quad










                                Description              Qty  Note                 HARNESS OPTIONS
               6X9-482A0-03-00  Joystick Controller Assy  1   (Optional) Joystick Blue  Main bus wire  Length
               6X9-82580-G0-00  Joystick harness          1                        6Y8-82553-01-00     0.3m (1 ft)
               6X9-82570-D0-00  Lanyard switch            1                        6Y8-82553-50-00     3m (10 ft)
               6X9-82570-B1-00  All start/stop switch     1                        6Y8-82553-11-00     4.6m (15 ft)
       TRIPLE
               6X9-83553-70-00  Extension harness 7.0m / 22 ft   2  Other lengths available  6Y8-82553-21-00  6.1m (20 ft)
               6X9-8258A-D0-00  Split harness Twin / Multi  1                      6Y8-82553-31-00     7.6m (25 ft)
               6X9-8258A-E0-00  Split harness Triple / Multi   1                   6Y8-82553-41-00     9.1m (30 ft)
               6Y8-82553-11-00  Main bus wire   4.6m / 15 ft  1  Other lengths available
                                Description              Qty  Note                 Pigtail bus wire    Length
               6X9-482A0-03-00  Joystick Controller Assy  1   (Optional) Joystick Blue  6Y8-82521-01-00  0.3m (1 ft)
               6X9-82580-G0-00  Joystick harness          1                        6Y8-82521-11-00     0.6m (2 ft)
               6X9-82570-D0-00  Lanyard switch            1                        6Y8-82521-21-00     0.9m (3 ft)
               6X9-82570-B1-00  All start/stop switch     1
       QUAD
               6X9-83553-70-00  Extension harness 7.0m / 22 ft   2  Other lengths available  Extension harness   Length
               6X9-8258A-D0-00  Split harness Twin / Multi  1                      6X9-83553-70-00     7m (22 ft)
               6X9-8258A-E0-00  Split harness Triple / Multi   1                   6X9-83553-80-00     8m (26 ft)
               6Y8-82553-11-00  Main bus wire   4.6m / 15 ft  1  Other lengths available
       BOW THRUSTER INTEGRATION
       6X9-86500-02-00  Bow Thruster Driver              Qty  Note
       6Y8-81920-11-00  Inline Hub                        1
       6Y8-82553-50-00  Main bus wire   3m / 10 ft        1   Other lengths available
       6Y8-82521-01-00  Pigtail bus wire   0.3m / 1 ft    1   Max. length 0.9m (3 ft)


                                                                                        2026 Marine Dealer Guide  –  151
