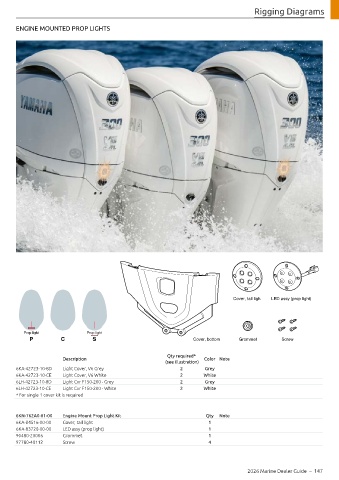

Rigging Diagrams

ENGINE MOUNTED PROP LIGHTS

Cover, tail ligh LED assy (prop light)

Prop light Prop light
P C S Cover, bottom Grommet Screw

Qty required*
Description Color Note
(see illustration)
6KA-42723-10-8D Light Cover, V6 Grey 2 Grey
6KA-42723-10-CE Light Cover, V6 White 2 White
6LH-42723-10-8D Light Cvr F150-200 - Grey 2 Grey
6LH-42723-10-CE Light Cvr F150-200 - White 2 White
* For single 1 cover kit is required

6KN-762A0-01-00 Engine Mount Prop Light Kit Qty Note
6KA-84516-00-00 Cover, tail light 1
6KA-83720-00-00 LED assy (prop light) 1
90480-20006 Grommet 1
97780-40112 Screw 4
