Rigging Diagrams

DBW REMOTE CONTROL (DISPLAY)

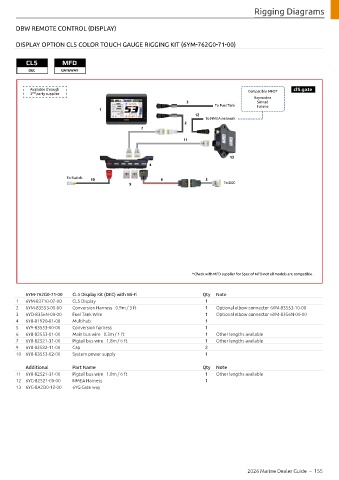

DISPLAY OPTION CL5 COLOR TOUCH GAUGE RIGGING KIT (6YM-762G0-71-00)

CL5 MFD
DEC GATEWAY

Available through Compatible MFD* cl5.gate
rd
3 party supplier
Raymarine
3 Simrad
To Fuel Tank Furuno
1
12
To NMEA network
2
7
11

13
4
To Switch 10 6 5
9 To DEC

* Check with MFD supplier for Spec of MFD not all models are compatible.

6YM-762G0-71-00 CL5 Display Kit (DEC) with Wi-Fi Qty Note
1 6YM-83710-07-00 CL5 Display 1
2 6YM-83553-00-00 Conversion Harness 0.9m / 3 ft 1 Optional elbow connector 6YM-83553-10-00
3 6YD-8356N-00-00 Fuel Tank Wire 1 Optional elbow connector 6YM-8356N-00-00
4 6Y8-81920-01-00 Multihub 1
5 6Y9-83553-00-00 Conversion harness 1
6 6Y8-82553-01-00 Main bus wire 0.3m / 1 ft 1 Other lengths available
7 6Y8-82521-31-00 Pigtail bus wire 1.8m / 6 ft 1 Other lengths available
9 6Y8-82582-11-00 Cap 2
10 6Y8-83553-02-00 System power supply 1

Additional Part Name Qty Note
11 6Y8-82521-31-00 Pigtail bus wire 1.8m / 6 ft 1 Other lengths available
12 6YG-82521-00-00 NMEA Harness 1
13 6YG-8A2D0-12-00 6YG Gate way
