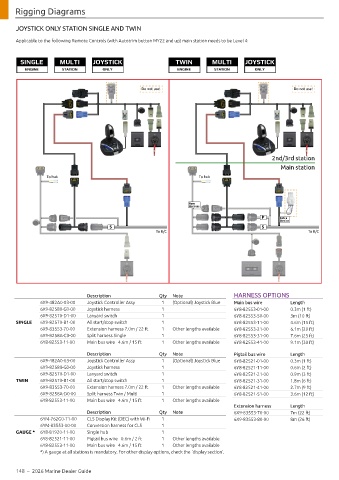

Rigging Diagrams
JOYSTICK ONLY STATION SINGLE AND TWIN
Applicable to the following Remote Controls (with Autotrim button MY22 and up) main station needs to be Level 4:
SINGLE MULTI JOYSTICK TWIN MULTI JOYSTICK
ENGINE STATION ONLY ENGINE STATION ONLY
Do not use! Do not use!
2nd/3rd station
Main station
To hub To hub
Rem
Harness
P Extra
Device
S S
To R/C To R/C
Description Qty Note HARNESS OPTIONS
6X9-482A0-03-00 Joystick Controller Assy 1 (Optional) Joystick Blue Main bus wire Length
6X9-82580-G0-00 Joystick harness 1 6Y8-82553-01-00 0.3m (1 ft)
6X9-82570-D1-00 Lanyard switch 1 6Y8-82553-50-00 3m (10 ft)
SINGLE 6X9-82570-B1-00 All start/stop switch 1 6Y8-82553-11-00 4.6m (15 ft)
6X9-83553-70-00 Extension harness 7.0m / 22 ft 1 Other lengths available 6Y8-82553-21-00 6.1m (20 ft)
6X9-8258A-C0-00 Split harness Single 1 6Y8-82553-31-00 7.6m (25 ft)
6Y8-82553-11-00 Main bus wire 4.6m / 15 ft 1 Other lengths available 6Y8-82553-41-00 9.1m (30 ft)
Description Qty Note Pigtail bus wire Length
6X9-482A0-03-00 Joystick Controller Assy 1 (Optional) Joystick Blue 6Y8-82521-01-00 0.3m (1 ft)
6X9-82580-G0-00 Joystick harness 1 6Y8-82521-11-00 0.6m (2 ft)
6X9-82570-D1-00 Lanyard switch 1 6Y8-82521-21-00 0.9m (3 ft)
TWIN 6X9-82570-B1-00 All start/stop switch 1 6Y8-82521-31-00 1.8m (6 ft)
6X9-83553-70-00 Extension harness 7.0m / 22 ft 1 Other lengths available 6Y8-82521-41-00 2.7m (9 ft)
6X9-8258A-D0-00 Split harness Twin / Multi 1 6Y8-82521-51-00 3.6m (12 ft)
6Y8-82553-11-00 Main bus wire 4.6m / 15 ft 1 Other lengths available
Extension harness Length
Description Qty Note 6X9-83553-70-00 7m (22 ft)
6YM-762G0-71-00 CL5 Display Kit (DEC) with Wi-Fi 1 6X9-83553-80-00 8m (26 ft)
6YM-83553-00-00 Conversion harness for CL5 1
GAUGE * 6Y8-81920-11-00 Single hub 1
6Y8-82521-11-00 Pigtail bus wire 0.6m / 2 ft 1 Other lengths available
6Y8-82553-11-00 Main bus wire 4.6m / 15 ft 1 Other lengths available
*) A gauge at all stations is mandatory. For other display options, check the 'display section'.
