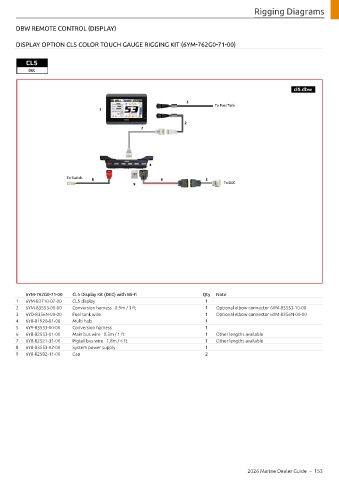

Rigging Diagrams

DBW REMOTE CONTROL (DISPLAY)

DISPLAY OPTION CL5 COLOR TOUCH GAUGE RIGGING KIT (6YM-762G0-71-00)

CL5
DEC

cl5.dbw

3
To Fuel Tank
1
2
7

4
To Switch 8 6 5
9 To DEC

6YM-762G0-71-00 CL5 Display Kit (DEC) with Wi-Fi Qty Note
1 6YM-83710-07-00 CL5 display 1
2 6YM-83553-00-00 Conversion harness 0.9m / 3 ft 1 Optional elbow connector 6YM-83553-10-00
3 6YD-8356N-00-00 Fuel tank wire 1 Optional elbow connector 6YM-8356N-00-00
4 6Y8-81920-01-00 Multi hub 1
5 6Y9-83553-00-00 Conversion harness 1
6 6Y8-82553-01-00 Main bus wire 0.3m / 1 ft 1 Other lengths available
7 6Y8-82521-31-00 Pigtail bus wire 1.8m / 6 ft 1 Other lengths available
8 6Y8-83553-02-00 System power supply 1
9 6Y8-82582-11-00 Cap 2
