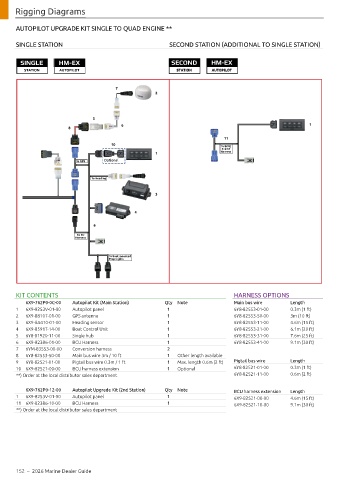

Rigging Diagrams

AUTOPILOT UPGRADE KIT SINGLE TO QUAD ENGINE **

SINGLE STATION SECOND STATION (ADDITIONAL TO SINGLE STATION)

HM-EX
SECOND
SINGLE HM-EX SECOND HM-EX
STATION
STATION AUTOPILOT STATION AUTOPILOT
AUTOPILOT
7
2

5
8 9 1
11
10 To BCU/
2nd ST
1 Harness
To GPS Optional

To Heading

3

4

6
To RC
Harness

To boat mounted
Prop Lights

KIT CONTENTS HARNESS OPTIONS
6X9-762P0-0C-00 Autopilot Kit (Main Station) Qty Note Main bus wire Length
1 6X9-8253V-01-00 Autopilot panel 1 6Y8-82553-01-00 0.3m (1 ft)
2 6X9-88107-01-00 GPS antenna 1 6Y8-82553-50-00 3m (10 ft)
3 6X9-8A410-01-00 Heading sensor 1 6Y8-82553-11-00 4.6m (15 ft)
4 6X9-8591T-14-00 Boat Control Unit 1 6Y8-82553-21-00 6.1m (20 ft)
5 6Y8-81920-11-00 Single hub 1 6Y8-82553-31-00 7.6m (25 ft)
6 6X9-82386-01-00 BCU Harness 1 6Y8-82553-41-00 9.1m (30 ft)
7 6YM-83553-00-00 Conversion harness 2
8 6Y8-82553-50-00 Main bus wire 3m / 10 ft 1 Other length available
9 6Y8-82521-01-00 Pigtail bus wire 0.3m / 1 ft 1 Max. length 0.6m (2 ft) Pigtail bus wire Length
10 6X9-82521-00-00 BCU harness extension 1 Optional 6Y8-82521-01-00 0.3m (1 ft)
**) Order at the local distributor sales department 6Y8-82521-11-00 0.6m (2 ft)

6X9-762P0-12-00 Autopilot Upgrade Kit (2nd Station) Qty Note BCU harness extension Length
1 6X9-8253V-01-00 Autopilot panel 1 6X9-82521-00-00 4.6m (15 ft)
11 6X9-82386-10-00 BCU Harness 1 6X9-82521-10-00 9.1m (30 ft)
**) Order at the local distributor sales department
