P. 148

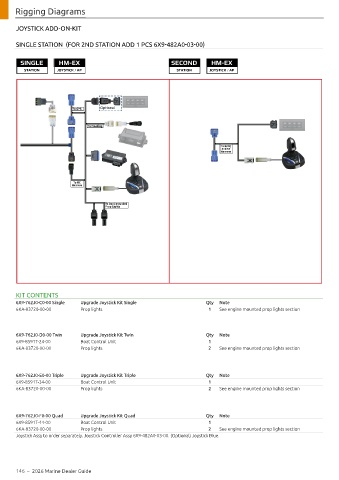

Rigging Diagrams
JOYSTICK ADD-ON-KIT
SINGLE STATION (FOR 2ND STATION ADD 1 PCS 6X9-482A0-03-00)
SINGLE HM-EX SECOND HM-EX
STATION JOYSTICK / AP STATION JOYSTICK / AP
To GPS Optional
To Heading
To BCU/
2nd ST
Harness
To RC
Harness
To boat mounted
Prop Lights
KIT CONTENTS
6X9-762J0-C0-00 Single Upgrade Joystick Kit Single Qty Note
6KA-83720-00-00 Prop lights 1 See engine mounted prop lights section
6X9-762J0-D0-00 Twin Upgrade Joystick Kit Twin Qty Note
6X9-8591T-24-00 Boat Control Unit 1
6KA-83720-00-00 Prop lights 2 See engine mounted prop lights section
6X9-762J0-E0-00 Triple Upgrade Joystick Kit Triple Qty Note
6X9-8591T-34-00 Boat Control Unit 1
6KA-83720-00-00 Prop lights 2 See engine mounted prop lights section
6X9-762J0-F0-00 Quad Upgrade Joystick Kit Quad Qty Note
6X9-8591T-44-00 Boat Control Unit 1
6KA-83720-00-00 Prop lights 2 See engine mounted prop lights section
Joystick Assy to order separately. Joystick Controller Assy 6X9-482A0-03-00. (Optional) Joystick Blue.
