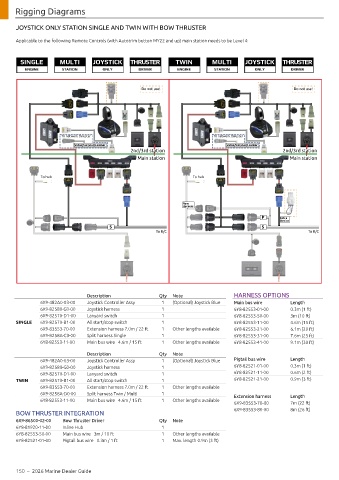

Rigging Diagrams

JOYSTICK ONLY STATION SINGLE AND TWIN WITH BOW THRUSTER

Applicable to the following Remote Controls (with Autotrim button MY22 and up) main station needs to be Level 4:

TWIN
SINGLE MULTI JOYSTICK THRUSTER SINGLE MULTI JOYSTICK THRUSTER
SINGLE
ENGINE
ENGINE STATION ONLY DRIVER ENGINE STATION ONLY DRIVER
ENGINE
Do not use! Do not use!

To network thruster To network thruster
Vetus/Sleipner/Lewmar Vetus/Sleipner/Lewmar
2nd/3rd station 2nd/3rd station
Main station Main station

To hub To hub

Rem
Harness
P Extra
Device
S S
To R/C To R/C

Description Qty Note HARNESS OPTIONS
6X9-482A0-03-00 Joystick Controller Assy 1 (Optional) Joystick Blue Main bus wire Length
6X9-82580-G0-00 Joystick harness 1 6Y8-82553-01-00 0.3m (1 ft)
6X9-82570-D1-00 Lanyard switch 1 6Y8-82553-50-00 3m (10 ft)
SINGLE 6X9-82570-B1-00 All start/stop switch 1 6Y8-82553-11-00 4.6m (15 ft)
6X9-83553-70-00 Extension harness 7.0m / 22 ft 1 Other lengths available 6Y8-82553-21-00 6.1m (20 ft)
6X9-8258A-C0-00 Split harness Single 1 6Y8-82553-31-00 7.6m (25 ft)
6Y8-82553-11-00 Main bus wire 4.6m / 15 ft 1 Other lengths available 6Y8-82553-41-00 9.1m (30 ft)

Description Qty Note
6X9-482A0-03-00 Joystick Controller Assy 1 (Optional) Joystick Blue Pigtail bus wire Length
6X9-82580-G0-00 Joystick harness 1 6Y8-82521-01-00 0.3m (1 ft)
6X9-82570-D1-00 Lanyard switch 1 6Y8-82521-11-00 0.6m (2 ft)
TWIN 6X9-82570-B1-00 All start/stop switch 1 6Y8-82521-21-00 0.9m (3 ft)
6X9-83553-70-00 Extension harness 7.0m / 22 ft 1 Other lengths available
6X9-8258A-D0-00 Split harness Twin / Multi 1 Extension harness Length
6Y8-82553-11-00 Main bus wire 4.6m / 15 ft 1 Other lengths available
6X9-83553-70-00 7m (22 ft)
6X9-83553-80-00 8m (26 ft)
BOW THRUSTER INTEGRATION
6X9-86500-02-00 Bow Thruster Driver Qty Note
6Y8-81920-11-00 Inline Hub 1
6Y8-82553-50-00 Main bus wire 3m / 10 ft 1 Other lengths available
6Y8-82521-01-00 Pigtail bus wire 0.3m / 1 ft 1 Max. length 0.9m (3 ft)

150 – 2026 Marine Dealer Guide
