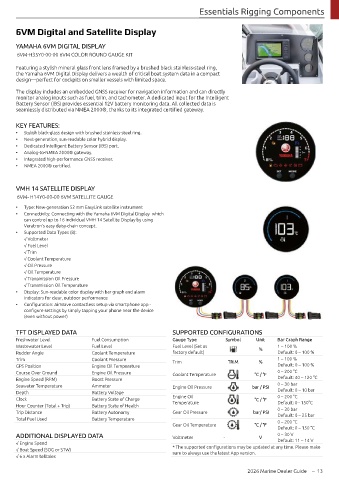

Page 15 - Yamaha Marine Zubehoer 2026

Essentials Rigging Components

6VM Digital and Satellite Display

YAMAHA 6VM DIGITAL DISPLAY
6VM-H35Y0-00-00 6VM COLOR ROUND GAUGE KIT

Featuring a stylish mineral glass front lens framed by a brushed black stainless-steel ring,
the Yamaha 6VM Digital Display delivers a wealth of critical boat system data in a compact
design—perfect for cockpits on smaller vessels with limited space.

The display includes an embedded GNSS receiver for navigation information and can directly
monitor analog inputs such as fuel, trim, and tachometer. A dedicated input for the Intelligent
Battery Sensor (IBS) provides essential 12V battery monitoring data. All collected data is
seamlessly distributed via NMEA 2000®, thanks to its integrated certified gateway.

KEY FEATURES:
• Stylish black-glass design with brushed stainless-steel ring.
• Next-generation, sun-readable color hybrid display.
• Dedicated Intelligent Battery Sensor (IBS) port.
• Analog-to-NMEA 2000® gateway.
• Integrated high-performance GNSS receiver.
• NMEA 2000® certified.

VMH 14 SATELLITE DISPLAY
6VM- H14Y0-00-00 6VM SATELLITE GAUGE

• Type: New-generation 52 mm EasyLink satellite instrument
• Connectivity: Connecting with the Yamaha 6VM Digital Display which
can control up to 16 individual VMH 14 Satellite Display by using
Veratron’s easy daisy-chain concept.
• Supported Data Types (8):
√ Voltmeter
√ Fuel Level
√ Trim
√ Coolant Temperature
√ Oil Pressure
√ Oil Temperature
√ Transmission Oil Pressure
√ Transmission Oil Temperature
• Display: Sun-readable color display with bar graph and alarm
indicators for clear, outdoor performance
• Configuration: AirWave contactless setup via smartphone app -
configure settings by simply tapping your phone near the device
(even without power)

TFT DISPLAYED DATA SUPPORTED CONFIGURATIONS
Freshwater Level Fuel Consumption Gauge Type Symbol Unit Bar Graph Range
Wastewater Level Fuel Level Fuel Level (Set as % 1 – 100 %
Rudder Angle Coolant Temperature factory default) Default: 0 – 100 %
Trim Coolant Pressure Trim TRIM % 1 – 100 %
GPS Position Engine Oil Temperature Default: 0 – 100 %
Course Over Ground Engine Oil Pressure Coolant Temperature °C / °F 0 – 200 °C
Engine Speed (RPM) Boost Pressure Default: 40 – 120 °C
Seawater Temperature Ammeter Engine Oil Pressure bar / PSI 0 – 30 bar
Depth Battery Voltage Default: 0 – 10 bar
Clock Battery State of Charge Engine Oil °C / °F 0 – 200 °C
Temperature
Default: 0 - 150°C
Hour Counter (Total + Trip) Battery State of Health
Trip Distance Battery Autonomy Gear Oil Pressure bar/ PSI 0 – 30 bar
Default: 0 – 25 bar
Total Fuel Used Battery Temperature 0 – 200 °C
Gear Oil Temperature °C / °F
Default: 0 – 150 °C
ADDITIONAL DISPLAYED DATA Voltmeter - V 0 – 30 V
√ Engine Speed Default: 11 – 14 V
√ Boat Speed (SOG or STW) * The supported configurations may be updated at any time. Please make
√ 6 x Alarm telltales sure to always use the latest App version.

2026 Marine Dealer Guide – 13
