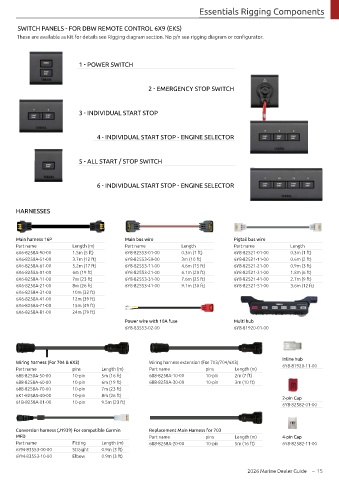

Essentials Rigging Components

SWITCH PANELS - FOR DBW REMOTE CONTROL 6X9 (EKS)
These are available as Kit for details see Rigging diagram section. No p/n see rigging diagram or configurator.

1 - POWER SWITCH

2 - EMERGENCY STOP SWITCH

3 - INDIVIDUAL START STOP

4 - INDIVIDUAL START STOP - ENGINE SELECTOR

5 - ALL START / STOP SWITCH

6 - INDIVIDUAL START STOP - ENGINE SELECTOR

HARNESSES

Main harness 16P Main bus wire Pigtail bus wire
Part name Length (m) Part name Length Part name Length
6X6-8258A-90-00 1.5m (5 ft) 6Y8-82553-01-00 0.3m (1 ft) 6Y8-82521-01-00 0.3m (1 ft)
6X6-8258A-51-00 3.7m (12 ft) 6Y8-82553-50-00 3m (10 ft) 6Y8-82521-11-00 0.6m (2 ft)
6X6-8258A-61-00 5.2m (17 ft) 6Y8-82553-11-00 4.6m (15 ft) 6Y8-82521-21-00 0.9m (3 ft)
6X6-8258A-01-00 6m (19 ft) 6Y8-82553-21-00 6.1m (20 ft) 6Y8-82521-31-00 1.8m (6 ft)
6X6-8258A-11-00 7m (23 ft) 6Y8-82553-31-00 7.6m (25 ft) 6Y8-82521-41-00 2.7m (9 ft)
6X6-8258A-21-00 8m (26 ft) 6Y8-82553-41-00 9.1m (30 ft) 6Y8-82521-51-00 3.6m (12 ft)
6X6-8258A-31-00 10m (32 ft)
6X6-8258A-41-00 12m (39 ft)
6X6-8258A-71-00 15m (49 ft)
6X6-8258A-81-00 24m (79 ft)
Power wire with 10A fuse Multi hub
6Y8-83553-02-00 6Y8-81920-01-00

Inline hub
Wiring harness (For 704 & 6X3) Wiring harness extension (For 703/704/6X3)
Part name pins Length (m) Part name pins Length (m) 6Y8-81920-11-00
688-8258A-50-00 10-pin 5m (16 ft) 688-8258A-10-00 10-pin 2m (7 ft)
688-8258A-60-00 10-pin 6m (19 ft) 688-8258A-30-00 10-pin 3m (10 ft)
688-8258A-70-00 10-pin 7m (23 ft)
6K1-8258A-40-00 10-pin 8m (26 ft) 2-pin Cap
61B-8258A-01-00 10-pin 9.5m (23 ft)
6Y8-82582-01-00

Conversion harness (J1939) For compatible Garmin Replacement Main Harness for 703
MFD Part name pins Length (m) 4-pin Cap
Part name Fitting Length (m) 688-8258A-20-00 10-pin 5m (16 ft) 6Y8-82582-11-00
6YM-83553-00-00 Straight 0.9m (3 ft)
6YM-83553-10-00 Elbow 0.9m (3 ft)
