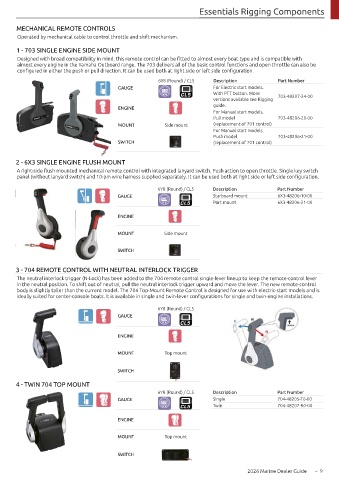

Page 11 - Yamaha Marine Zubehoer 2026

Essentials Rigging Components

MECHANICAL REMOTE CONTROLS
Operated by mechanical cable to control throttle and shift mechanism.

1 - 703 SINGLE ENGINE SIDE MOUNT
Designed with broad compatibility in mind, this remote control can be fitted to almost every boat type and is compatible with
almost every engine in the Yamaha Outboard range. The 703 delivers all of the basic control functions and open throttle can also be
configured in either the push or pull direction. It can be used both at right side or left side configuration.
6Y8 (Round) / CL5 Description Part Number
GAUGE For Electric start models.
CL5 With PTT button. More 703-48207-24-00
versions available see Rigging
guide.
ENGINE
For Manual start models.
Pull model 703-48206-20-00
MOUNT Side mount (replacement of 701 control)
For Manual start models.
Push model 703-48206-21-00
SWITCH (replacement of 701 control)

2 - 6X3 SINGLE ENGINE FLUSH MOUNT
A right-side flush mounted mechanical remote control with integrated lanyard switch. Push action to open throttle. Single key switch
panel (without lanyard switch) and 10-pin wire harness supplied separately. It can be used both at right side or left side configuration.

6Y8 (Round) / CL5 Description Part Number
GAUGE Starboard mount 6X3-48206-10-00
CL5 Port mount 6X3-48206-21-00

ENGINE

MOUNT Side mount

SWITCH

3 - 704 REMOTE CONTROL WITH NEUTRAL INTERLOCK TRIGGER
The neutral interlock trigger (N-Lock) has been added to the 704 remote control single-lever lineup to keep the remote-control lever
in the neutral position. To shift out of neutral, pull the neutral interlock trigger upward and move the lever. The new remote-control
body is slightly taller than the current model. The 704 Top-Mount Remote Control is designed for use with electric-start models and is
ideally suited for center-console boats. It is available in single and twin-lever configurations for single and twin-engine installations.

6Y8 (Round) / CL5
GAUGE
CL5

ENGINE

MOUNT Top mount

SWITCH
4 - TWIN 704 TOP MOUNT
6Y8 (Round) / CL5 Description Part Number
GAUGE Single 704-48205-T0-00
CL5 Twin 704-48207-R0-00

ENGINE

MOUNT Top mount

SWITCH

2026 Marine Dealer Guide – 9
