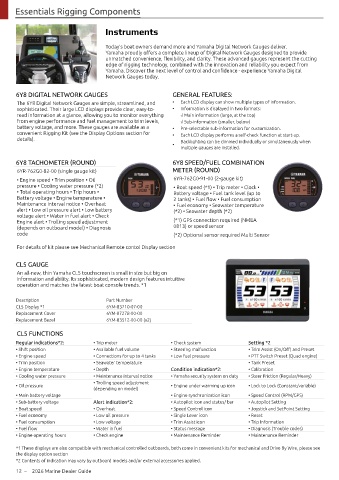

Page 14 - Yamaha Marine Zubehoer 2026

Essentials Rigging Components

Instruments

Today’s boat owners demand more and Yamaha Digital Network Gauges deliver.
Yamaha proudly offers a complete lineup of Digital Network Gauges designed to provide
unmatched convenience, flexibility, and clarity. These advanced gauges represent the cutting
edge of rigging technology, combined with the innovation and reliability you expect from
Yamaha. Discover the next level of control and confidence - experience Yamaha Digital
Network Gauges today.

6Y8 DIGITAL NETWORK GAUGES GENERAL FEATURES:
The 6Y8 Digital Network Gauges are simple, streamlined, and • Each LCD display can show multiple types of information.
sophisticated. Their large LCD displays provide clear, easy-to- • Information is displayed in two formats:
read information at a glance, allowing you to monitor everything √ Main information (large, at the top)
from engine performance and fuel management to trim levels, √ Sub-information (smaller, below)
battery voltage, and more. These gauges are available as a • Pre-selectable sub-information for customization.
convenient Rigging Kit (see the Display Options section for • Each LCD display performs a self-check function at start-up.
details). Backlighting can be dimmed individually or simultaneously when
•
multiple gauges are installed.

6Y8 TACHOMETER (ROUND) 6Y8 SPEED/FUEL COMBINATION
6YR-762G0-82-00 (single gauge kit) METER (ROUND)
• Engine speed • Trim position • Oil 6YR-762G0-91-00 (2-gauge kit)
pressure • Cooling water pressure (*2) • Boat speed (*1) • Trip meter • Clock •
• Total operating hours • Trip hours • Battery voltage • Fuel tank level (up to
Battery voltage • Engine temperature • 2 tanks) • Fuel flow • Fuel consumption
Maintenance interval notice • Overheat • Fuel economy • Seawater temperature
alert • Low oil pressure alert • Low battery (*2) • Seawater depth (*2)
voltage alert • Water in fuel alert • Check
Engine alert • Trolling speed adjustment (*1) GPS connection required (NMEA
(depends on outboard model) • Diagnosis 0813) or speed sensor
code (*2) Optional sensor required Multi Sensor

For details of kit please see Mechanical Remote contol Display section

CL5 GAUGE
An all-new, thin Yamaha CL5 touchscreen is small in size but big on
information and ability. Its sophisticated, modern design features intuitive
operation and matches the latest boat console trends. *1

Description Part Number
CL5 Display *1 6YM-83710-07-00
Replacement Cover 6YM-87278-00-00
Replacement Bezel 6YM-83512-00-00 (x2)
CL5 FUNCTIONS
Regular indications*2: • Trip meter • Check system Setting *2
• Shift position • Available fuel volume • Steering malfunction • Trim Assist (On/Off) and Preset
• Engine speed • Connections for up to 4 tanks • Low fuel pressure • PTT Switch Preset (Quad engine)
• Trim position • Seawater temperature • Tank Preset
• Engine temperature • Depth Condition indication*2: • Calibration
• Cooling water pressure • Maintenance interval notice • Yamaha security system on duty • Steer Friction (Regular/Heavy)
• Trolling speed adjustment
• Oil pressure • Engine under warming up icon • Lock to Lock (Constant/variable)
(depending on model)
• Main battery voltage • Engine synchronization icon • Speed Control (RPM/GPS)
• Sub-battery voltage Alert indication*2: • Autopilot icon and status/ bar • Autopilot Setting
• Boat speed • Overheat • Speed Control icon • Joystick and SetPoint Setting
• Fuel economy • Low oil pressure • Single Lever icon • Reset
• Fuel consumption • Low voltage • Trim Assist icon • Trip Information
• Fuel flow • Water in fuel • Status message • Diagnosis (Trouble codes)
• Engine operating hours • Check engine • Maintenance Reminder • Maintenance Reminder

*1 These displays are also compatible with mechanical controlled outboards, both come in convenient kits for mechanical and Drive By Wire, please see
the display option section
*2 Contents of indication may vary by outboard models and/or external accessories applied.
