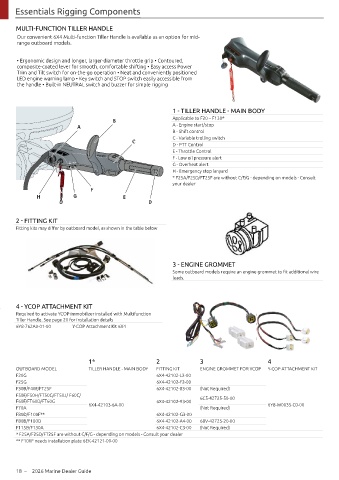

Essentials Rigging Components

MULTI-FUNCTION TILLER HANDLE
Our convenient 6X4 Multi-function Tiller Handle is available as an option for mid-
range outboard models.

• Ergonomic design and longer, larger-diameter throttle grip • Contoured,
composite-coated lever for smooth, comfortable shifting • Easy access Power
Trim and Tilt switch for on-the-go operation • Neat and conveniently positioned
LED engine warning lamp • Key switch and STOP switch easily accessible from
the handle • Built-in NEUTRAL switch and buzzer for simple rigging

1 - TILLER HANDLE - MAIN BODY
B Applicable to F20 – F130*
A A - Engine start/stop
B - Shift control
C - Variable trolling switch
C
D - PTT Control
E - Throttle Control
F - Low oil pressure alert
G - Overheat alert
H - Emergency stop lanyard
* F25A/F25D/FT25F are without C/F/G - depending on models - Consult
your dealer
F
H G E
D

2 - FITTING KIT
Fitting kits may differ by outboard model, as shown in the table below

3 - ENGINE GROMMET
Some outboard models require an engine grommet to fit additional wire
leads.

F115B_Multi-function tiller handleTTACHMENT KIT
4 - YCOP A
Required to activate YCOP immobilizer installed with Multifunction
Tiller Handle. See page 20 for installation details
6Y8-762A0-01-00 Y-COP Attachment Kit 6X4

1* 2 3 4
OUTBOARD MODEL TILLER HANDLE - MAIN BODY FITTING KIT ENGINE GROMMET FOR YCOP Y-COP ATTACHMENT KIT
F20G 6X4-42102-L2-00
F25G 6X4-42102-F2-00
F30B/F40F/FT25F 6X4-42102-83-00 (Not Required)
F50F/F50H/FT50G/FT50J/ F60C/ 6C5-42725-50-00
F60F/FT60D/FT60G 6X4-42102-93-00
F70A 6X4-42103-6A-00 (Not Required) 6Y8-W0035-C0-00
F80D/F100F** 6X4-42102-G3-00
F80B/F100D 6X4-42102-A4-00 68V-42725-20-00
F115B/F130A 6X4-42102-C3-00 (Not Required)
* F25A/F25D/FT25F are without C/F/G - depending on models - Consult your dealer
** F100F needs installation plate 6EK-42121-00-00
