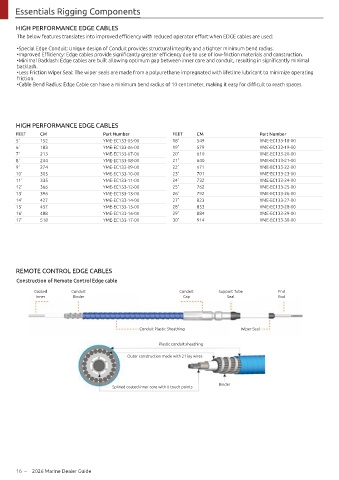

Page 18 - Yamaha Marine Zubehoer 2026

Essentials Rigging Components

HIGH PERFORMANCE EDGE CABLES
The below features translates into improved efficiency with reduced operator effort when EDGE cables are used:

•Special Edge Conduit: Unique design of Conduit provides structural integrity and a tighter minimum bend radius.
•Improved Efficiency: Edge cables provide significantly greater efficiency due to use of low-friction materials and construction.
•Minimal Backlash: Edge cables are built allowing optimum gap between inner core and conduit, resulting in significantly minimal
backlash.
•Less Friction Wiper Seal: The wiper seals are made from a polyurethane impregnated with lifetime lubricant to minimize operating
friction.
•Cable Bend Radius: Edge Cable can have a minimum bend radius of 10 centimeter, making it easy for difficult to reach spaces.

HIGH PERFORMANCE EDGE CABLES
FEET CM Part Number FEET CM Part Number
5' 152 YME-EC133-05-00 18' 549 YME-EC133-18-00
6' 183 YME-EC133-06-00 19' 579 YME-EC133-19-00
7' 213 YME-EC133-07-00 20' 610 YME-EC133-20-00
8' 244 YME-EC133-08-00 21' 640 YME-EC133-21-00
9' 274 YME-EC133-09-00 22' 671 YME-EC133-22-00
10' 305 YME-EC133-10-00 23' 701 YME-EC133-23-00
11' 335 YME-EC133-11-00 24' 732 YME-EC133-24-00
12' 366 YME-EC133-12-00 25' 762 YME-EC133-25-00
13' 396 YME-EC133-13-00 26' 792 YME-EC133-26-00
14' 427 YME-EC133-14-00 27' 823 YME-EC133-27-00
15' 457 YME-EC133-15-00 28' 853 YME-EC133-28-00
16' 488 YME-EC133-16-00 29' 884 YME-EC133-29-00
17' 518 YME-EC133-17-00 30' 914 YME-EC133-30-00

REMOTE CONTROL EDGE CABLES

Construction of Remote Control Edge cable
Coated Conduit Conduit Support Tube End
Inner Binder Cap Seal Rod

Conduit Plastic Sheathing Wiper Seal

Plastic conduit sheathing

Outer construction made with 21 lay wires

Binder
Splined coated inner core with 6 touch points
