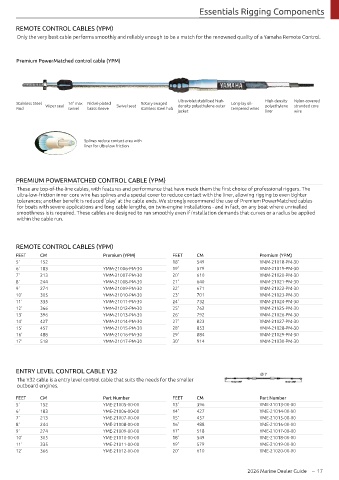

Page 19 - Yamaha Marine Zubehoer 2026
P. 19
Essentials Rigging Components
REMOTE CONTROL CABLES (YPM)
Only the very best cable performs smoothly and reliably enough to be a match for the renowned quality of a Yamaha Remote Control.
Premium PowerMatched control cable (YPM)
Ultraviolet-stabilised high- High-density Nylon-covered
Stainless Steel Wiper seal 16” max Nickel-plated Swivel seat Rotary swaged density polyethylene outer Long-lay oil- polyethylene stranded core
Rod swivel brass sleeve stainless steel hub tempered wires
jacket liner wire
Splines reduce contact area with
liner for ultra low friction
PREMIUM POWERMATCHED CONTROL CABLE (YPM)
These are top-of-the-line cables, with features and performance that have made them the first choice of professional riggers. The
ultra-low-friction inner core wire has splines and a special cover to reduce contact with the liner, allowing rigging to even tighter
tolerances; another benefit is reduced ‘play’ at the cable ends. We strongly recommend the use of Premium PowerMatched cables
for boats with severe applications and long cable lengths, on twin-engine installations - and in fact, on any boat where unrivalled
smoothness is is required. These cables are designed to run smoothly even if installation demands that curves or a radius be applied
within the cable run.
REMOTE CONTROL CABLES (YPM)
FEET CM Premium (YPM) FEET CM Premium (YPM)
5' 152 18' 549 YMM-21018-PM-30
6' 183 YMM-21006-PM-30 19' 579 YMM-21019-PM-30
7' 213 YMM-21007-PM-30 20' 610 YMM-21020-PM-30
8' 244 YMM-21008-PM-30 21' 640 YMM-21021-PM-30
9' 274 YMM-21009-PM-30 22' 671 YMM-21022-PM-30
10' 305 YMM-21010-PM-30 23' 701 YMM-21023-PM-30
11' 335 YMM-21011-PM-30 24' 732 YMM-21024-PM-30
12' 366 YMM-21012-PM-30 25' 762 YMM-21025-PM-30
13' 396 YMM-21013-PM-30 26' 792 YMM-21026-PM-30
14' 427 YMM-21014-PM-30 27' 823 YMM-21027-PM-30
15' 457 YMM-21015-PM-30 28' 853 YMM-21028-PM-30
16' 488 YMM-21016-PM-30 29' 884 YMM-21029-PM-30
17' 518 YMM-21017-PM-30 30' 914 YMM-21030-PM-30
ENTRY LEVEL CONTROL CABLE Y32
The Y32 cable is a entry level control cable that suits the needs for the smaller
outboard engines.
FEET CM Part Number FEET CM Part Number
5' 152 YME-21005-00-00 13' 396 YME-21013-00-00
6' 183 YME-21006-00-00 14' 427 YME-21014-00-00
7' 213 YME-21007-00-00 15' 457 YME-21015-00-00
8' 244 YME-21008-00-00 16' 488 YME-21016-00-00
9' 274 YME-21009-00-00 17' 518 YME-21017-00-00
10' 305 YME-21010-00-00 18' 549 YME-21018-00-00
11' 335 YME-21011-00-00 19' 579 YME-21019-00-00
12' 366 YME-21012-00-00 20' 610 YME-21020-00-00
