Page 13 - Yamaha Marine Zubehoer 2026

Essentials Rigging Components

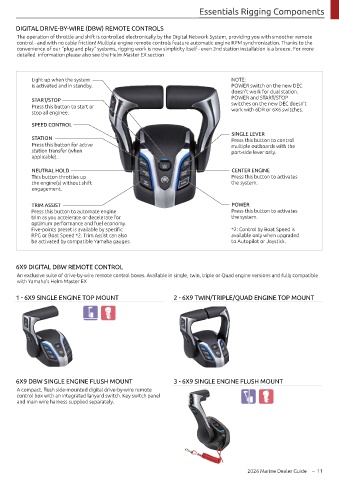

DIGITAL DRIVE-BY-WIRE (DBW) REMOTE CONTROLS
The operation of throttle and shift is controlled electronically by the Digital Network System, providing you with smoother remote
control - and with no cable friction! Multiple engine remote controls feature automatic engine RPM synchronization. Thanks to the
convenience of our “plug and play” systems, rigging work is now simplicity itself - even 2nd station installation is a breeze. For more
detailed information please also see the Helm Master EX section

Light up when the system NOTE:
is activated and in standby. POWER switch on the new DEC
doesn’t work for dual station.
START/STOP POWER and START/STOP
Press this button to start or switches on the new DEC doesn’t
stop all enginee. work with 6DR or 6X6 switches.

SPEED CONTROL
SINGLE LEVER
STATION Press this button to control
Press this button for active multiple outboards with the
station transfer (when port-side lever only.
applicable).

NEUTRAL HOLD CENTER ENGINE
This button throttles up Press this button to activates
the engine(s) without shift the system.
engagement.

TRIM ASSIST POWER
Press this button to automate engine Press this button to activates
trim as you accelerate or decelerate for the system.
optimum performance and fuel economy.
Five-points preset is available by specific *2: Control by Boat Speed is
RPG or Boat Speed *2. Trim Assist can also available only when upgraded
be activated by compatible Yamaha gauges. to Autopilot or Joystick.

6X9 DIGITAL DBW REMOTE CONTROL
An exclusive suite of drive-by-wire remote control boxes. Available in single, twin, triple or Quad engine versions and fully compatible
with Yamaha's Helm Master EX

1 - 6X9 SINGLE ENGINE TOP MOUNT 2 - 6X9 TWIN/TRIPLE/QUAD ENGINE TOP MOUNT

6X9 DBW SINGLE ENGINE FLUSH MOUNT 3 - 6X9 SINGLE ENGINE FLUSH MOUNT
A compact, flush side-mounted digital drive-by-wire remote
control box with an integrated lanyard switch. Key switch panel
and main wire harness supplied separately.

2026 Marine Dealer Guide – 11
