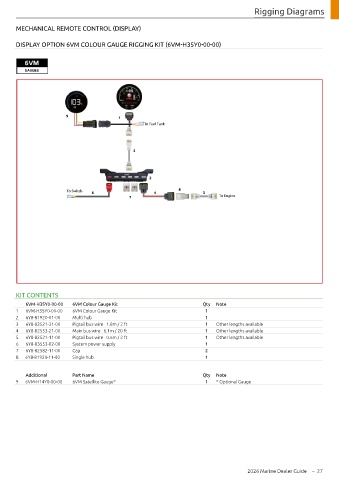

Rigging Diagrams

MECHANICAL REMOTE CONTROL (DISPLAY)

DISPLAY OPTION 6VM COLOUR GAUGE RIGGING KIT (6VM-H35Y0-00-00)

6VM
GAUGES

9 1
To Fuel Tank

5

2

To Switch 6 4 8 3
7 To Engine

KIT CONTENTS
6VM-H35Y0-00-00 6VM Colour Gauge Kit Qty Note
1 6VM-H35Y0-00-00 6VM Colour Gauge Kit 1
2 6Y8-81920-01-00 Multi hub 1
3 6Y8-82521-31-00 Pigtail bus wire 1.8m / 2 ft 1 Other lengths available
4 6Y8-82553-21-00 Main bus wire 6.1m / 20 ft 1 Other lengths available
5 6Y8-82521-11-00 Pigtail bus wire 0.6m / 2 ft 1 Other lengths available
6 6Y8-83553-02-00 System power supply 1
7 6Y8-82582-11-00 Cap 2
6Y8-81920-11-00 Single hub 1

Additional Part Name Qty Note
6VM-H14Y0-00-00 6VM Satellite Gauge* 1 * Optional Gauge

2026 Marine Dealer Guide – 27
