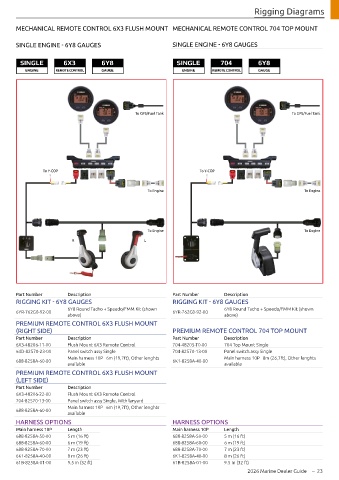

Rigging Diagrams

MECHANICAL REMOTE CONTROL 6X3 FLUSH MOUNT MECHANICAL REMOTE CONTROL 704 TOP MOUNT

SINGLE ENGINE - 6Y8 GAUGES SINGLE ENGINE - 6Y8 GAUGES

SINGLE 6X3 6Y8 SINGLE 704 6Y8
ENGINE REMOTE CONTROL GAUGE ENGINE REMOTE CONTROL GAUGE

To GPS/Fuel Tank To GPS/Fuel Tank

To Y-COP To Y-COP

To Engine To Engine

To Engine To Engine
R L

Part Number Description Part Number Description
RIGGING KIT - 6Y8 GAUGES RIGGING KIT - 6Y8 GAUGES
6Y8 Round Tacho + Speedo/FMM Kit (shown 6Y8 Round Tacho + Speedo/FMM Kit (shown
6YR-762G0-92-00 6YR-762G0-92-00
above) above)
PREMIUM REMOTE CONTROL 6X3 FLUSH MOUNT
(RIGHT SIDE) PREMIUM REMOTE CONTROL 704 TOP MOUNT
Part Number Description Part Number Description
6X3-48206-11-00 Flush Mount 6X3 Remote Control 704-48205-T0-00 704 Top Mount Single
64D-82570-23-00 Panel switch assy Single 704-82570-13-00 Panel switch assy Single
Main harness 10P 6m (19,7ft), Other lenghts Main harness 10P 8m (26,7ft), Other lenghts
688-8258A-60-00 6K1-8258A-40-00
available available
PREMIUM REMOTE CONTROL 6X3 FLUSH MOUNT
(LEFT SIDE)
Part Number Description
6X3-48206-22-00 Flush Mount 6X3 Remote Control
704-82570-13-00 Panel switch assy Single, With lanyard
Main harness 10P 6m (19,7ft), Other lenghts
688-8258A-60-00
available
HARNESS OPTIONS HARNESS OPTIONS
Main harness 10P Length Main harness 10P Length
688-8258A-50-00 5 m (16 ft) 688-8258A-50-00 5 m (16 ft)
688-8258A-60-00 6 m (19 ft) 688-8258A-60-00 6 m (19 ft)
688-8258A-70-00 7 m (23 ft) 688-8258A-70-00 7 m (23 ft)
6K1-8258A-40-00 8 m (26 ft) 6K1-8258A-40-00 8 m (26 ft)
61B-8258A-01-00 9.5 m (32 ft) 61B-8258A-01-00 9.5 m (32 ft)
2026 Marine Dealer Guide – 23
