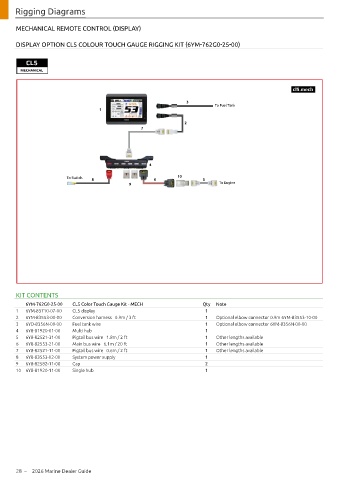

Rigging Diagrams
MECHANICAL REMOTE CONTROL (DISPLAY)
DISPLAY OPTION CL5 COLOUR TOUCH GAUGE RIGGING KIT (6YM-762G0-25-00)
CL5
MECHANICAL
cl5.mech
3
To Fuel Tank
1
2
7
4
To Switch 8 6 10 5
9 To Engine
KIT CONTENTS
6YM-762G0-25-00 CL5 Color Touch Gauge Kit - MECH Qty Note
1 6YM-83710-07-00 CL5 display 1
2 6YM-83553-00-00 Conversion harness 0.9m / 3 ft 1 Optional elbow connector 0.9m 6YM-83553-10-00
3 6YD-8356N-00-00 Fuel tank wire 1 Optional elbow connector 6YM-8356N-00-00
4 6Y8-81920-01-00 Multi hub 1
5 6Y8-82521-31-00 Pigtail bus wire 1.8m / 2 ft 1 Other lengths available
6 6Y8-82553-21-00 Main bus wire 6.1m / 20 ft 1 Other lengths available
7 6Y8-82521-11-00 Pigtail bus wire 0.6m / 2 ft 1 Other lengths available
8 6Y8-83553-02-00 System power supply 1
9 6Y8-82582-11-00 Cap 2
10 6Y8-81920-11-00 Single hub 1
