Rigging Diagrams

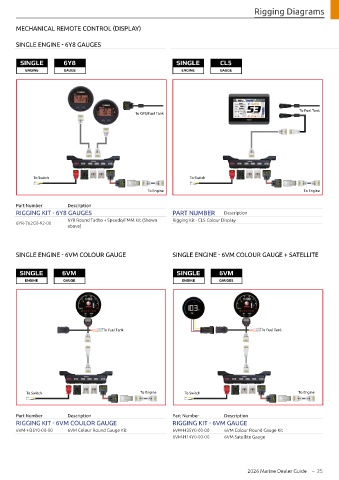

MECHANICAL REMOTE CONTROL (DISPLAY)

SINGLE ENGINE - 6Y8 GAUGES

SINGLE 6Y8 SINGLE CL5
ENGINE GAUGE ENGINE GAUGE

To Fuel Tank
To GPS/Fuel Tank

To Switch To Switch

To Engine To Engine

Part Number Description
RIGGING KIT - 6Y8 GAUGES PART NUMBER Description
6Y8 Round Tacho + Speedo/FMM Kit (Shown Rigging Kit - CL5 Colour Display
6YR-762G0-92-00
above)

SINGLE ENGINE - 6VM COLOUR GAUGE SINGLE ENGINE - 6VM COLOUR GAUGE + SATELLITE

SINGLE 6VM SINGLE 6VM
ENGINE GAUGE ENGINE GAUGES

To Fuel Tank To Fuel Tank

To Switch To Engine To Switch To Engine

Part Number Description Part Number Description
RIGGING KIT - 6VM COULOR GAUGE RIGGING KIT - 6VM GAUGE
6VM-H35Y0-00-00 6VM Colour Round Gauge Kit 6VM-H35Y0-00-00 6VM Colour Round Gauge Kit
6VM-H14Y0-00-00 6VM Satellite Gauge
