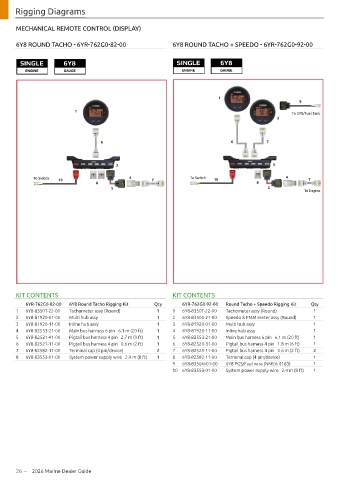

Rigging Diagrams

MECHANICAL REMOTE CONTROL (DISPLAY)

6Y8 ROUND TACHO - 6YR-762G0-82-00 6Y8 ROUND TACHO + SPEEDO - 6YR-762G0-92-00

SINGLE 6Y8 SINGLE 6Y8
ENGINE GAUGE ENGINE GAUGE

1
9
1
To GPS/Fuel Tank
2

6 6 7

3 3

To Switch 10 4 7 To Switch 10 4 7
8 8
5 5
To Engine

KIT CONTENTS KIT CONTENTS
6YR-762G0-82-00 6Y8 Round Tacho Rigging Kit Qty 6YR-762G0-92-00 Round Tacho + Speedo Rigging Kit Qty
1 6Y8-8350T-22-00 Tachometer assy (Round) 1 1 6Y8-8350T-22-00 Tachometer assy (Round) 1
2 6Y8-81920-01-00 Multi hub assy 1 2 6Y8-83500-21-00 Speedo & FMM meter assy (Round) 1
3 6Y8-81920-11-00 Inline hub assy 1 3 6Y8-81920-01-00 Multi hub assy 1
4 6Y8-82553-21-00 Main bus harness 6 pin 6.1 m (20 ft) 1 4 6Y8-81920-11-00 Inline hub assy 1
5 6Y8-82521-41-00 Pigtail bus harness 4 pin 2.7 m (9 ft) 1 5 6Y8-82553-21-00 Main bus harness 6 pin 6.1 m (20 ft) 1
6 6Y8-82521-11-00 Pigtail bus harness 4 pin 0.6 m (2 ft) 1 6 6Y8-82521-31-00 Pigtail bus harness 4 pin 1.8 m (6 ft) 1
7 6Y8-82582-11-00 Terminal cap (4 pin/device) 2 7 6Y8-82521-11-00 Pigtail bus harness 4 pin 0.6 m (2 ft) 2
8 6Y8-83553-01-00 System power supply wire 2.4 m (8 ft) 1 8 6Y8-82582-11-00 Terminal cap (4 pin/device) 1
9 6Y8-8356N-01-00 6Y8 PGS/Fuel wire (NMEA 0183) 1
10 6Y8-83553-01-00 System power supply wire 2.4 m (8 ft) 1
