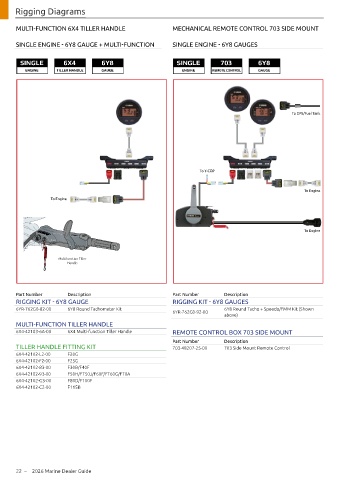

Rigging Diagrams

MULTI-FUNCTION 6X4 TILLER HANDLE MECHANICAL REMOTE CONTROL 703 SIDE MOUNT

SINGLE ENGINE - 6Y8 GAUGE + MULTI-FUNCTION SINGLE ENGINE - 6Y8 GAUGES

SINGLE 6X4 6Y8 SINGLE 703 6Y8
ENGINE TILLER HANDLE GAUGE ENGINE REMOTE CONTROL GAUGE

To GPS/Fuel Tank

To Y-COP

To Engine
To Engine

To Engine

Multifunction Tiller
Handle

Part Number Description Part Number Description
RIGGING KIT - 6Y8 GAUGE RIGGING KIT - 6Y8 GAUGES
6YR-762G0-82-00 6Y8 Round Tachometer Kit 6Y8 Round Tacho + Speedo/FMM Kit (Shown
6YR-762G0-92-00
above)
MULTI-FUNCTION TILLER HANDLE
6X4-42103-6A-00 6X4 Multi-function Tiller Handle REMOTE CONTROL BOX 703 SIDE MOUNT
Part Number Description
TILLER HANDLE FITTING KIT 703-48207-25-00 703 Side Mount Remote Control
6X4-42102-L2-00 F20G
6X4-42102-F2-00 F25G
6X4-42102-83-00 F30B/F40F
6X4-42102-93-00 F50H/FT50J/F60F/FT60G/F70A
6X4-42102-G3-00 F80D/F100F
6X4-42102-C2-00 F115B
