Rigging Diagrams

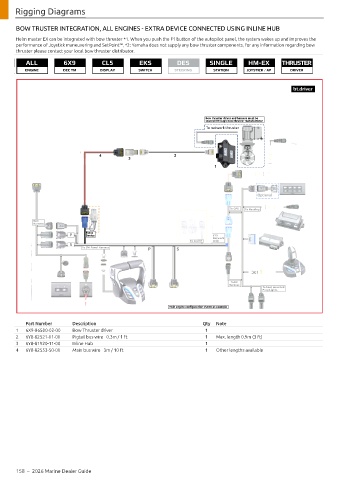

BOW TRUSTER INTEGRATION, ALL ENGINES - EXTRA DEVICE CONNECTED USING INLINE HUB

Helm master EX can be integrated with bow thruster *1. When you push the F1 button of the autopilot panel, the system wakes up and improves the
performance of Joystick maneuvering and SetPoint™, *2: Yamaha does not supply any bow thruster components, for any information regarding bow
thruster please contact your local bow thruster distributor.
SINGLE 6X9 CL5 EKS DES SINGLE HM-EX THRUSTER
ALL
ENGINE DEC TM DISPLAY SWITCH STEERING STATION JOYSTICK / AP DRIVER
ENGINE

bt.driver

Bow thruster driver and harness must be Do not use! bt.driver
sourced through bow thruster manufacturer
To network thruster

4 2
3
1

Optional

To GPS To Heading

Rem
Harness
P Extra 6Y9
Device
Network
To 2nd ST Only
S
To SW Panel Harness P S

To RC
Harness
To boat mounted
Prop Lights
Twin engine configuration shown as example

Part Number Description Qty Note
1 6X9-86500-02-00 Bow Thruster driver 1
2 6Y8-82521-01-00 Pigtail bus wire 0.3m / 1 ft 1 Max. length 0.9m (3 ft)
3 6Y8-81920-11-00 Inline Hub 1
4 6Y8-82553-50-00 Main bus wire 3m / 10 ft 1 Other lengths available

158 – 2026 Marine Dealer Guide
