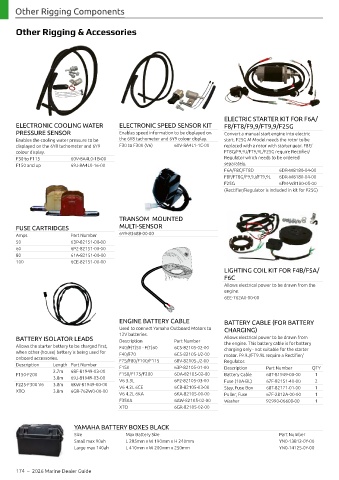

Page 176 - Yamaha Marine Zubehoer 2026

Other Rigging Components

Other Rigging & Accessories

ELECTRIC STARTER KIT FOR F6A/
ELECTRONIC COOLING WATER ELECTRONIC SPEED SENSOR KIT F8/FT8/F9,9/FT9,9/F25G
PRESSURE SENSOR Enables speed information to be displayed on Convert a manual start engine into electric
Enables the cooling water pressure to be the 6Y8 tachometer and 6Y9 colour display. start. F25G M Model needs the rotor to be
displayed on the 6Y8 tachometer and 6Y9 F30 to F300 (V6) 60V-8A4L1-1C-00 replaced with a rotor with starter gear. F8F/
colour display. FT8G/F9,9J/FT9,9L/F25G require Rectifier/
F30 to F115 60V-8A4L0-1B-00 Regulator which needs to be ordered
F150 and up 69J-8A4L0-16-00 separately.
F6A/F8C/FT8D 6DR-W8180-04-00
F8F/FT8G/F9,9J/FT9,9L 6DR-W8180-04-00
F25G 6FM-W8180-05-00
(Rectifier/Regulator is included in kit for F25G)

TRANSOM MOUNTED
FUSE CARTRIDGES MULTI-SENSOR
Amps Part Number 6Y9-83688-00-00
50 63P-82151-00-00
60 6P2-82151-00-00
80 61A-82151-00-00
100 6CE-82151-00-00
LIGHTING COIL KIT FOR F4B/F5A/
F6C
Allows electrical power to be drawn from the
engine.
6EE-762A0-00-00

ENGINE BATTERY CABLE BATTERY CABLE (FOR BATTERY
Used to connect Yamaha Outboard Motors to CHARGING)
12V batteries.
BATTERY ISOLATOR LEADS Description Part Number Allows electrical power to be drawn from
Allows the starter battery to be charged first, F40/F(T)50 - F(T)60 6C5-82105-02-00 the engine. This battery cable is for battery
when other (house) battery is being used for F40/F70 6C5-82105-U2-00 charging only - not suitable for the starter
motor. F9.9J/FT9.9L require a Rectifier/
onboard accessories. F75/F80/F100/F115 68V-82105-J2-00 Regulator.
Description Length Part Number F150 63P-82105-01-00 Description Part Number QTY
2.7m 68F-81949-03-00
F150-F200 F150/F175/F200 6DA-82105-02-00 Battery Cable 68T-81949-00-00 1
3.8m 69J-81949-03-00 V6 3.3L 6P2-82105-03-00 Fuse (10A-BL) 67F-82151-40-00 2
F225-F300 V6 3.8m 6KW-81949-00-00 V6 4.2L 6CE 6CB-82105-03-00 Stay, Fuse Box 68T-82171-01-00 1
XTO 3.8m 6GR-762W0-00-00
V6 4.2L 6KA 6KA-82105-00-00 Puller, Fuse 67F-2812A-00-00 1
F350A 6AW-82105-02-00 Washer 92990-06600-00 1
XTO 6GR-82105-02-00

YAMAHA BATTERY BOXES BLACK
Size Max Battery Size Part Number
Small max 90ah L 285mm x W 190mm x H 240mm YN0-13812-0Y-00
Large max 140ah L 410mm x W 200mm x 250mm YN0-14125-0Y-00

174 – 2026 Marine Dealer Guide
