Page 66 - Yamaha Zubehör Aussenbordmotoren 2017

Rigging Order Guide

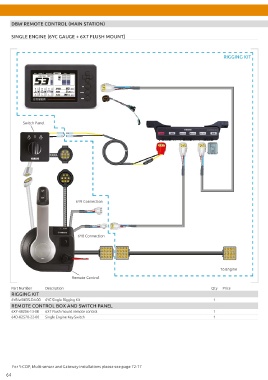

DBW REMOTE CONTROL (MAIN STATION)

SINGLE ENGINE (6YC GAUGE + 6X7 FLUSH MOUNT) SINGLE ENGINE (6Y9 COLOUR DISPLAY + 6X7 FLUSH MOUNT)

RIGGING KIT RIGGING KIT

6Y8-8350T-01-00
6Y8-8356N-01-00
6Y8-81920-01-00
64D-82570-21-00 Switch Panel
Switch Panel
6Y8-83500-01-00

6Y8-85371-01-00

6Y8-83553-01-00

6Y9 Connection
6Y9 Connection

6Y8 Connection 6Y8 Connection

To Engine To Engine
6X7-48206-10-00 Remote Control
Remote Control

Part Number Description Qty Price Part Number Description Qty Price
RIGGING KIT RIGGING KIT
6Y8-W0035-D4-00 6YC Single Rigging Kit 1 6Y9-W0035-27-00 6Y9 Single Rigging Kit 1
REMOTE CONTROL BOX AND SWITCH PANEL REMOTE CONTROL BOX AND SWITCH PANEL
6X7-48206-13-00 6X7 Flush mount remote control 1 6X7-48206-13-00 6X7 Flush mount remote control 1
64D-82570-22-00 Single Engine Key Switch 1 64D-82570-22-00 Single Engine Key Switch 1

For Y-COP, Multi-sensor and Gateway installations please see page 72-77 For Y-COP, Multi-sensor and Gateway installations please see page 72-77
