Rigging Order Guide

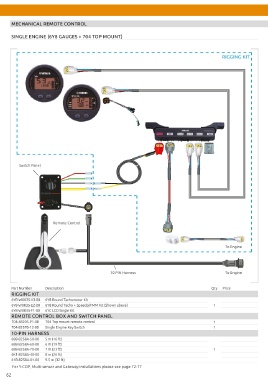

MECHANICAL REMOTE CONTROL

SINGLE ENGINE (6Y8 GAUGES + 704 TOP MOUNT) TWIN ENGINE (6YC GAUGE)

RIGGING KIT RIGGING KIT

6Y8-8350T-01-00
6Y8-81920-01-00
6Y8-8350T-11-00
6Y8-8356N-01-00
6Y8-81920-01-00
6Y8-83500-11-00

6Y8-83553-01-00
6Y8-8356N-01-00

6Y8-83553-01-00
6Y8-85371-01-00
Switch Panel
704-82570-10-00

Switch Panel
6Y8-82570-03-00
704-48205-P1-00
Remote Control
704-48205-P1-00

10 PIN Harness

To Engine
6Y8-81920-11-00

10 PIN Harness To Engine Remote Control To Engine

Part Number Description Qty Price Part Number Description Qty Price
RIGGING KIT RIGGING KIT
6YR-W0035-Y3-00 6Y8 Round Tachometer Kit 6Y8-W0035-G4-00 6YC Counter Rotation Rigging Kit 1
6Y8-W0035-E2-00 6Y8 Round Tacho + Speedo/FMM Kit (Shown above) 1
6Y8-W0035-F1-00 6YC LCD Single Kit
REMOTE CONTROL BOX AND SWITCH PANEL
704-48205-P1-00 704 Top mount remote control 1
704-82570-12-00 Single Engine Key Switch 1
10-PIN HARNESS
688-8258A-50-00 5 m (16 ft)
688-8258A-60-00 6 m (19 ft)
688-8258A-70-00 7 m (23 ft) 1
6K1-8258A-40-00 8 m (26 ft)
61B-8258A-01-00 9.5 m (32 ft)
For Y-COP, Multi-sensor and Gateway installations please see page 72-77 For Y-COP, Multi-sensor and Gateway installations please see page 72-77
