Rigging Order Guide

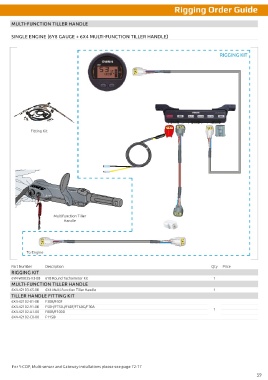

Rigging Order Guide MULTI-FUNCTION TILLER HANDLE

SINGLE ENGINE (6Y8 GAUGE + 6X4 MULTI-FUNCTION TILLER HANDLE)

RIGGING KIT

Fitting Kit

INDEX

Description Page
MULTI-FUNCTION TILLER HANDLE
Single Engine (6Y8 Gauge + 6X4 Multi-function Tiller Handle) 59 Multifunction Tiller
MECHANICAL REMOTE CONTROL Handle
Single Engine (6Y8 Gauges + 703 Side Mount) 60
Single Engine (6Y8 Gauges + 6X3 Flush Mount) 61
Single Engine (6Y8 Gauges + 704 Top Mount) 62
Twin Engine (6YC Gauges) 63
DBW REMOTE CONTROL (MAIN STATION)
Single Engine (6YC Gauges + 6X7 Flush Mount) 64 To Engine
Single Engine (6Y9 Colour Display + 6X7 Flush Mount) 65
Single Engine (6YC Gauges + 6X6 Top Mount) 66
Single Engine (6Y9 Colour Display + 6X6 Top Mount) 67 Part Number Description Qty Price
Twin Engine (6YC Gauges) 68 RIGGING KIT
Twin Engine (6Y9 Colour Display) 69 6YR-W0035-Y3-00 6Y8 Round Tachometer Kit 1
Triple Engine (6Y9 Colour Display) 70 MULTI-FUNCTION TILLER HANDLE
DBW REMOTE CONTROL (2ND STATION) 6X4-42103-65-00 6X4 Multi-function Tiller Handle 1
Single Engine 71 TILLER HANDLE FITTING KIT
Twin Engine 72 6X4-42102-81-00 F30B/F40F
Triple Engine 73
MULTI-SENSOR 6X4-42102-91-00 F50H/FT50J/F60F/FT60G/F70A 1
F80B/F100D
6X4-42102-A1-00
For 6Y9 Colour Display 74 F115B_Multi-function tiller handle F115B
6X4-42102-C0-00
For 6Y8 Gauges (DBW Remote Control) 74
For 6Y8 Gauges (Mechanical Remote Control) 74
GATEWAY/AGI
Gateway 75
Analogue Gauge Interface (AGI) 75
Y-COP
Y-COP with Multi-function Tiller Handle 76
Y-COP with Single Engine 77
Y-COP with Twin/Triple Engines (Mechanical Remote Control) 78
Y-COP with Twin/Triple Engines (DBW Remote Control) 79 For Y-COP, Multi-sensor and Gateway installations please see page 72-77
58 59
