Page 71 - Yamaha Zubehör Aussenbordmotoren 2017

Rigging Order Guide

DBW REMOTE CONTROL (MAIN STATION)

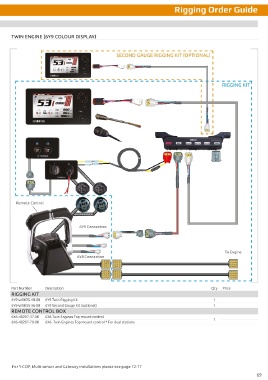

TWIN ENGINE (6YC GAUGE) TWIN ENGINE (6Y9 COLOUR DISPLAY)

RIGGING KIT SECOND GAUGE RIGGING KIT (OPTIONAL)

6Y8-8350T-01-00 6Y8-83500-01-00 6Y8-8350S-01-00
6Y9-83553-40-00
6Y9-83710-02-00
RIGGING KIT

6Y9-83553-40-00
6X6-82570-60-00
6Y9-8356N-01
6X6-82570-40-00 6Y8-81920-01-00
6Y9-83710-02-00
6X6-82570-60-00 6Y9-8356N-10
6Y8-81920-01-00
6X6-82570-40-00

6Y8-85371-01-00

6X6-48207-34 6Y8-83553-01-00

6Y8-83553-01-00

6X6-48207-34
6Y9 Connection Remote Control

6Y9-83553-00-00
6Y9 Connection
6Y8 Connection

To Engine
6Y8 Connection

Remote Control
To Engine

Part Number Description Qty Price Part Number Description Qty Price
RIGGING KIT RIGGING KIT
6Y8-W0035-B3-00 6YC Twin Rigging Kit 1 6Y9-W0035-18-00 6Y9 Twin Rigging Kit 1
REMOTE CONTROL BOX 6Y9-W0035-36-00 6Y9 Second Gauge Kit (optional) 1
6X6-48207-37-00 6X6 Twin Engines Top mount control 1 REMOTE CONTROL BOX
6X6-48207-70-00 6X6 Twin Engines Top mount control * For dual stations 6X6-48207-37-00 6X6 Twin Engines Top mount control 1
6X6-48207-70-00 6X6 Twin Engines Top mount control * For dual stations

For Y-COP, Multi-sensor and Gateway installations please see page 72-77 For Y-COP, Multi-sensor and Gateway installations please see page 72-77
