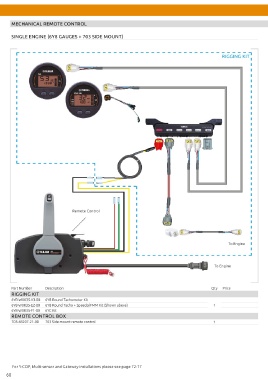

Rigging Order Guide

MECHANICAL REMOTE CONTROL

SINGLE ENGINE (6Y8 GAUGES + 703 SIDE MOUNT) SINGLE ENGINE (6Y8 GAUGES + 6X3 FLUSH MOUNT)

RIGGING KIT RIGGING KIT

6Y8-8350T-11-00
6Y8-8350T-11-00
6Y8-8356N-01-00
6Y8-81920-01-00 6Y8-8356N-01-00
6Y8-81920-01-00
6Y8-83500-11-00
6Y8-83500-11-00

6Y8-83553-01-00
6Y8-83553-01-00

6Y8-85371-01-00
6Y8-85371-01-00
Switch Panel
64D-82570-21-00

6X3-48206-01-00

Remote Control
703-48207-1A-10

6Y8-81920-11-00
To Engine To Engine
6Y8-81920-11-00

To Engine
10 PIN Harness To Engine
Remote Control

Part Number Description Qty Price Part Number Description Qty Price
RIGGING KIT RIGGING KIT
6YR-W0035-Y3-00 6Y8 Round Tachometer Kit 6YR-W0035-Y3-00 6Y8 Round Tachometer Kit
6Y8-W0035-E2-00 6Y8 Round Tacho + Speedo/FMM Kit (Shown above) 1 6Y8-W0035-E2-00 6Y8 Round Tacho + Speedo/FMM Kit (Shown above) 1
6Y8-W0035-F1-00 6YC Kit 6Y8-W0035-F1-00 6YC LCD Single Kit
REMOTE CONTROL BOX REMOTE CONTROL BOX AND SWITCH PANEL
703-48207-21-00 703 Side mount remote control 1 6X3-48206-02-00 6X3 Flush mount remote control 1
64D-82570-22-00 Single Engine Key Switch 1
10-PIN HARNESS
688-8258A-50-00 5 m (16 ft)
688-8258A-60-00 6 m (19 ft)
688-8258A-70-00 7 m (23 ft) 1
6K1-8258A-40-00 8 m (26 ft)
61B-8258A-01-00 9.5 m (32 ft)
For Y-COP, Multi-sensor and Gateway installations please see page 72-77 For Y-COP, Multi-sensor and Gateway installations please see page 72-77
