Rigging Order Guide

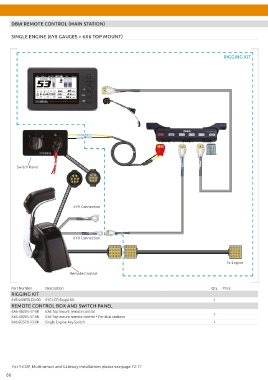

DBW REMOTE CONTROL (MAIN STATION)

SINGLE ENGINE (6Y8 GAUGES + 6X6 TOP MOUNT) SINGLE ENGINE (6Y9 COLOUR DISPLAY + 6X6 TOP MOUNT)

RIGGING KIT RIGGING KIT

6Y9-83553-40-00

6Y9-8356N-01

6Y9-83710-02-00
6Y8-8350T-01-00
6X6-82570-31-00 6Y9-8356N-10 6Y8-81920-01-00
6Y8-8356N-01-00 6Y8-81920-01-00

6Y8-83500-01-00

6Y8-85371-01-00
Switch Panel
6Y8-85371-01-00
6X6-82570-31-00
Switch Panel
6Y8-83553-01-00 6Y8-83553-01-00
6X6-48205-34
6X6-48205-34

6Y9-83553-00-00
6Y9 Connection 6Y9 Connection

6Y8 Connection 6Y8 Connection

To Engine To Engine

Remote Control Remote Control

Part Number Description Qty Price Part Number Description Qty Price
RIGGING KIT RIGGING KIT
6Y8-W0035-D4-00 6YC LCD Single Kit 1 6Y9-W0035-27-00 6Y9 Single Rigging Kit 1
REMOTE CONTROL BOX AND SWITCH PANEL REMOTE CONTROL BOX AND SWITCH PANEL
6X6-48205-37-00 6X6 Top mount remote control 1 6X6-48205-37-00 6X6 Top mount remote control 1
6X6-48205-47-00 6X6 Top mount remote control * For dual stations 6X6-48205-47-00 6X6 Top mount remote control * For dual stations
6X6-82570-33-00 Single Engine Key Switch 1 6X6-82570-33-00 Single Engine Key Switch 1

For Y-COP, Multi-sensor and Gateway installations please see page 72-77 For Y-COP, Multi-sensor and Gateway installations please see page 72-77
