Rigging Order Guide

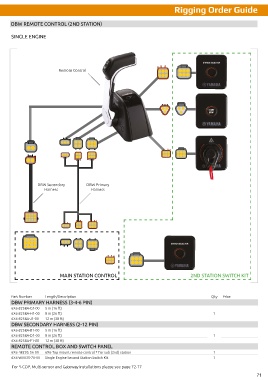

DBW REMOTE CONTROL (MAIN STATION) DBW REMOTE CONTROL (2ND STATION)

TRIPLE ENGINE (6Y9 COLOUR DISPLAY) SINGLE ENGINE

SECOND GAUGE RIGGING KIT (OPTIONAL) 6X6-48205-53
6X6-82570-B0-00

6Y9-83553-40-00
Remote Control
6Y9-83710-02-00
RIGGING KIT

6X6-82570-90

6Y9-83553-40-00
6Y9-8356N-01

6Y8-81920-01-00
6Y9-83710-02-00
6Y9-8356N-10
6X6-82570-70-00
6X6-82570-80

6X6-82570-50-00

6Y8-85371-01-00

6Y8-83553-01-00
DBW Secondary DBW Primary
Harness Harness

Remote Control
6X6-48205-44

6Y9-83553-00-00
6Y9 Connection

6X6-82570-B0-00

To Engine

6Y8 Connection

MAIN STATION CONTROL 2ND STATION SWITCH KIT

Part Number Description Qty Price Part Number Length/Description Qty Price
DBW RIGGING KIT DBW PRIMARY HARNESS (3-4-6 PIN)
6Y9-W0035-46-00 6Y9 Triple Rigging Kit 1 6X6-8258A-G1-00 5 m (16 ft)
6Y9-W0035-36-00 6Y9 Second Gauge Kit (optional) 1 6X6-8258A-H1-00 8 m (26 ft) 1
REMOTE CONTROL BOX 6X6-8258A-J1-00 12 m (38 ft)
6X6-48208-60-00 6X6 Triple Engines Top mount control (supporting both single/dual station) 1 DBW SECONDARY HARNESS (2-12 PIN)
6X6-8258A-B1-00 5 m (16 ft)
6X6-8258A-D1-00 8 m (26 ft) 1
6X6-8258A-F1-00 12 m (38 ft)
REMOTE CONTROL BOX AND SWITCH PANEL
6X6-48205-56-00 6X6 Top mount remote control * For sub (2nd) station 1
6X6-W0035-70-00 Single Engine Second Station Switch Kit 1

For Y-COP, Multi-sensor and Gateway installations please see page 72-77 For Y-COP, Multi-sensor and Gateway installations please see page 72-77
