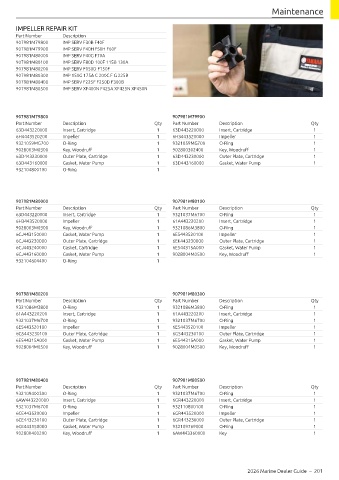

Page 203 - Yamaha Marine Zubehoer 2026

Maintenance

IMPELLER REPAIR KIT
Part Number Description
907981M79800 IMP SERV F30B F40F
907981M79900 IMP SERV F40H F50H F60F
907981M80000 IMP SERV F40G F70A
907981M80100 IMP SERV F80D 100F 115B 130A
907981M80200 IMP SERV F150D F150F
907981M80300 IMP 150G 175A C 200C F G 225B
907981M80400 IMP SERV F225F F250D F300B
907981M80500 IMP SERV XF400N F425A XF425N XF450N

907981M79800 907981M79900
Part Number Description Qty Part Number Description Qty
63D443220000 Insert, Cartridge 1 63D443220000 Insert, Cartridge 1
6H4443520200 Impeller 1 6H3443520000 Impeller 1
9321059MG700 O-Ring 1 9321059MG700 O-Ring 1
9028003M0300 Key, Woodruff 1 902800302400 Key, Woodruff 1
63D443230000 Outer Plate, Cartridge 1 63D443230000 Outer Plate, Cartridge 1
63D443160000 Gasket, Water Pump 1 63D443160000 Gasket, Water Pump 1
932104800100 O-Ring 1

907981M80000 907981M80100
Part Number Description Qty Part Number Description Qty
63D443220000 Insert, Cartridge 1 9321037M6700 O-Ring 1
6H3443520000 Impeller 1 61A443220200 Insert, Cartridge 1
9028003M0300 Key, Woodruff 1 9321086M3800 O-Ring 1
6CJ443150000 Gasket, Water Pump 1 6E5443520100 Impeller 1
6CJ443230000 Outer Plate, Cartridge 1 6EK443230000 Outer Plate, Cartridge 1
6CJ443240000 Gasket, Cartridge 1 6E544315A000 Gasket, Water Pump 1
6CJ443160000 Gasket, Water Pump 1 9028004M0500 Key, Woodruff 1
932104604400 O-Ring 1

907981M80200 907981M80300
Part Number Description Qty Part Number Description Qty
9321086M3800 O-Ring 1 9321086M3800 O-Ring 1
61A443220200 Insert, Cartridge 1 61A443220200 Insert, Cartridge 1
9321037M6700 O-Ring 1 9321037M6700 O-Ring 1
6E5443520100 Impeller 1 6E5443520100 Impeller 1
6G5443230100 Outer Plate, Cartridge 1 6G5443230100 Outer Plate, Cartridge 1
6E544315A000 Gasket, Water Pump 1 6E544315A000 Gasket, Water Pump 1
9028004M0500 Key, Woodruff 1 9028004M0500 Key, Woodruff 1

907981M80400 907981M80500
Part Number Description Qty Part Number Description Qty
932109400300 O-Ring 1 9321037M6700 O-Ring 1
6AW443220000 Insert, Cartridge 1 6GR443220000 Insert, Cartridge 1
9321037M6700 O-Ring 1 932110800100 O-Ring 1
6CE443520000 Impeller 1 6GR443520000 Impeller 1
6CE443230100 Outer Plate, Cartridge 1 6GR443230000 Outer Plate, Cartridge 1
6CE443150000 Gasket, Water Pump 1 932109769000 O-Ring 1
902800400200 Key, Woodruff 1 6AW443360000 Key 1

2026 Marine Dealer Guide – 201
