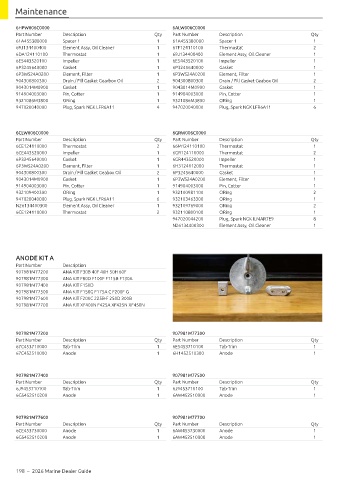

Page 200 - Yamaha Marine Zubehoer 2026
P. 200
Maintenance
6HPW006C0000 6ALW006C0000
Part Number Description Qty Part Number Description Qty
61A455380000 Spacer 1 1 61A455380000 Spacer 1 1
69J134400400 Element Assy, Oil Cleaner 1 67F124110100 Thermostat 2
6DA124110100 Thermostat 1 69J134400400 Element Assy, Oil Cleaner 1
6E5443520100 Impeller 1 6E5443520100 Impeller 1
6P3245640000 Gasket 1 6P3245640000 Gasket 1
6P3WS24A0200 Element, Filter 1 6P3WS24A0200 Element, Filter 1
904300800300 Drain / Fill Gasket Gearbox Oil 2 904300800300 Drain / Fill Gasket Geabox Oil 2
9043014M0900 Gasket 1 9043014M0900 Gasket 1
914904003000 Pin, Cotter 1 914904003000 Pin, Cotter 1
9321086M3800 ORing 1 9321086M3800 ORing 1
947020040000 Plug, Spark NGK LFR6A11 4 947020040000 Plug, Spark NGK LFR6A11 6
6CLW006C0000 6GRW006C0000
Part Number Description Qty Part Number Description Qty
6CE124110000 Thermostat 2 66M124110100 Thermostat 1
6CE443520000 Impeller 1 6GR124110000 Thermostat 2
6P3245640000 Gasket 1 6GR443520000 Impeller 1
6P3WS24A0200 Element, Filter 1 6H3124112000 Thermostat 1
904300800300 Drain / Fill Gasket Geabox Oil 2 6P3245640000 Gasket 1
9043014M0900 Gasket 1 6P3WS24A0200 Element, Filter 1
914904003000 Pin, Cotter 1 914904003000 Pin, Cotter 1
932109400300 ORing 1 932100981100 ORing 2
947020040000 Plug, Spark NGK LFR6A11 6 932103463300 ORing 1
N26134400300 Element Assy, Oil Cleaner 1 932109769000 ORing 2
6CE124110000 Thermostat 2 932110800100 ORing 1
947020044200 Plug, Spark NGK ILMAR7E9 8
N26134400300 Element Assy, Oil Cleaner 1
ANODE KIT A
Part Number Description
907981M77200 ANA KIT F30B 40F 40H 50H 60F
907981M77300 ANA KIT F80D F100F F115B F130A
907981M77400 ANA KIT F150D
907981M77500 ANA KIT F150G F175A C F200F G
907981M77600 ANA KIT F200C 225B-F 250D 300B
907981M77700 ANA KIT XF400N F425A XF425N XF450N
907981M77200 907981M77300
Part Number Description Qty Part Number Description Qty
67C453710000 Tab-Trim 1 6E5453710100 Tab-Trim 1
67C452510000 Anode 1 6H1452510300 Anode 1
907981M77400 907981M77500
Part Number Description Qty Part Number Description Qty
6J9453710100 Tab-Trim 1 6J9453710100 Tab-Trim 1
6G5452510200 Anode 1 6AW452510000 Anode 1
907981M77600 907981M77700
Part Number Description Qty Part Number Description Qty
6CE453730000 Anode 1 6AW453730000 Anode 1
6G5452510200 Anode 1 6AW452510000 Anode 1
198 – 2026 Marine Dealer Guide
