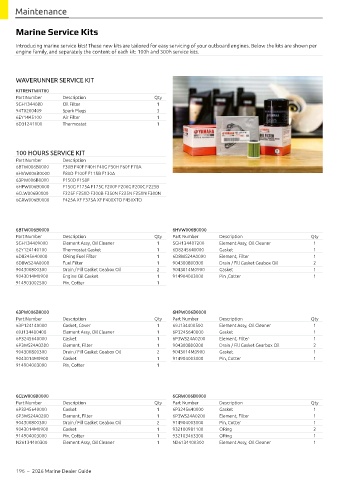

Page 198 - Yamaha Marine Zubehoer 2026

Maintenance

Marine Service Kits

Introducing marine service kits! These new kits are tailored for easy servicing of your outboard engines. Below the kits are shown per
engine family, and separately the content of each kit: 100h and 300h service kits.

WAVERUNNER SERVICE KIT
KITRENTWRT00
Part Number Description Qty
5GH1344080 Oil Filter 1
9470200409 Spark Plugs 3
6EY1445100 Air Filter 1
6D31241100 Thermostat 1

100 HOURS SERVICE KIT
Part Number Description
6BTW006B0000 F30B F40F F40H F40G F50H F60F F70A
6HVW006B0000 F80D F100F F115B F130A
63PW006B0000 F150D F150F
6HPW006B0000 F150G F175A F175C F200F F200G F200C F225B
6CLW006B0000 F225F F250D F300B F350N F225N F250N F300N
6GRW006B0000 F425A XF F375A XF F400XTO F450XTO

6BTW006B0000 6HVW006B0000
Part Number Description Qty Part Number Description Qty
5GH134409000 Element Assy, Oil Cleaner 1 5GH134407200 Element Assy, Oil Cleaner 1
62Y124140100 Thermostat Gasket 1 6D8245640000 Gasket 1
6D8245640000 ORing Fuel Filter 1 6D8WS24A0000 Element, Filter 1
6D8WS24A0000 Fuel Filter 1 904300800300 Drain / Fill Gasket Geabox Oil 2
904300800300 Drain / Fill Gasket Geabox Oil 2 9043014M0900 Gasket 1
9043014M0900 Engine Oil Gasket 1 914904003000 Pin ,Cotter 1
914903002500 Pin, Cotter 1

63PW006B0000 6HPW006B0000
Part Number Description Qty Part Number Description Qty
63P124140000 Gasket, Cover 1 69J134400500 Element Assy, Oil Cleaner 1
69J134400400 Element Assy, Oil Cleaner 1 6P3245640000 Gasket 1
6P3245640000 Gasket 1 6P3WS24A0200 Element, Filter 1
6P3WS24A0200 Element, Filter 1 904300800300 Drain / Fill Gasket Gearbox Oil 2
904300800300 Drain / Fill Gasket Geabox Oil 2 9043014M0900 Gasket 1
9043014M0900 Gasket 1 914904003000 Pin, Cotter 1
914904003000 Pin, Cotter 1

6CLW006B0000 6GRW006B0000
Part Number Description Qty Part Number Description Qty
6P3245640000 Gasket 1 6P3245640000 Gasket 1
6P3WS24A0200 Element, Filter 1 6P3WS24A0200 Element, Filter 1
904300800300 Drain / Fill Gasket Geabox Oil 2 914904003000 Pin, Cotter 1
9043014M0900 Gasket 1 932100981100 ORing 2
914904003000 Pin, Cotter 1 932103463300 ORing 1
N26134400300 Element Assy, Oil Cleaner 1 N26134400300 Element Assy, Oil Cleaner 1

196 – 2026 Marine Dealer Guide
