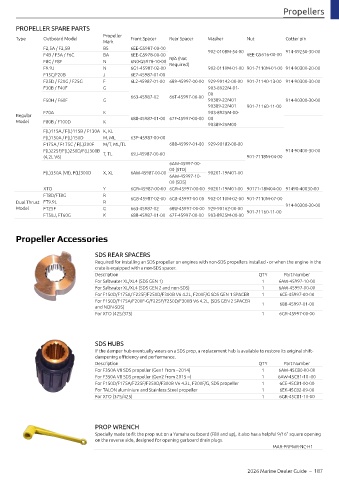

Page 189 - Yamaha Marine Zubehoer 2026

Propellers

PROPELLER SPARE PARTS
Propeller
Type Outboard Model Front Spacer Rear Spacer Washer Nut Cotter pin
Mark
F2,5A / F2,5B BS 6EE-G5987-00-00
F4B / F5A / F6C BA 6EE-G5978-00-00 902-0108M-54-00 6EE-G5616-00-00 914-09250-30-00
F8C / F8F N 6N0-G5978-10-00 N/A (Not
Required)
F9.9J N 6G1-45987-02-00 902-0110M-01-00 901-7110M-01-00 914-90300-20-00
F15C/F20B J 6E7-45987-01-00
F25D / F20G / F25G F 6L2-45987-01-00 689-45997-00-00 929-90142-00-00 901-71140-13-00 914-90300-30-00
F30B / F40F G 903-8922M-01-
00
663-45987-02 66T-45997-00-00
F50H / F60F G 90389-22M01 914-90300-30-00
90389-22M01 901-71160-11-00
F70A K 903-8925M-00-
Regular 688-45987-01-00 67F-45997-00-00 00
Model F80B / F100D K
90389-25M00
F(L)115A / F(L)115B / F130A K, KL
F(L)150A / F(L)150D M, ML 63P-45987-00-00
F175A / F175C / F(L)200F M/T, ML/TL 688-45997-01-00 929-90182-00-00
F(L)225F/F(L)250D/F(L)300B T, TL 69J-45987-00-00 914-90400-30-00
(4,2L V6) 901-7118M-04-00
6AW-45997-00-
00 (STD)
F(L)350A (V8), F(L)300D X, XL 6AW-45987-00-00 90201-19M01-00
6AW-45997-10-
00 (SDS)
XTO Y 6GR-45987-00-00 6GR-45997-00-00 90201-19M01-00 90171-18M04-00 91490-40030-00
FT8D/FT8G R 6G8-45987-02-00 6G8-45997-00 00 902-0110M-02-00 901-7110M-07-00
Dual Thrust FT9.9L R
Model FT25F G 663-45987-02 68U-45997-00-00 929-90162-00-00 914-90300-30-00
FT50J, FT60G K 688-45987-01-00 67F-45997-00-00 903-8925M-00-00 901-71160-11-00

Propeller Accessories

SDS REAR SPACERS
Required for installing an SDS propeller on engines with non-SDS propellers installed - or when the engine in the
crate is equipped with a non-SDS spacer.
Description QTY Part Number
For Saltwater XL/XL4 (SDS GEN 1) 1 6AW-45997-10-00
For Saltwater XL/XL4 (SDS GEN 2 and non-SDS) 1 6AW-45997-00-00
For F150D/F175A/ F225F/F250D/F300B V6 4.2L, F200F/G SDS GEN 1 SPACER 1 6CE-45997-00-00
For F150D/F175A/F200F-G/F225F/F250D/F300B V6 4.2L, (SDS GEN 2 SPACER 1 688-45997-01-00
and NON-SDS)
For XTO (425/375) 1 6GR-45997-00-00

SDS HUBS
If the damper hub eventually wears on a SDS prop, a replacement hub is available to restore its original shift-
dampening efficiency and performance.
Description QTY Part Number
For F350A V8 SDS propeller (Gen1 from --2014) 1 6AW-45C80-00-00
For F350A V8 SDS propeller (Gen2 from 2015 --) 1 6AW-45C81-10 -00
For F150D/F175A/F225F/F250D/F300B V6 4.2L, F200F/G, SDS propeller 1 6CE-45C81-00-00
For TALON aluminium and Stainless Steel propeller 1 6EK-45C82-09-00
For XTO (375/425) 1 6GR-45C81-10-00

PROP WRENCH
Specially made to fit the prop nut on a Yamaha outboard (F80 and up), it also has a helpful 9/16” square opening
on the reverse side, designed for opening garboard drain plugs.
MAR-PRPWR-NC-H1
