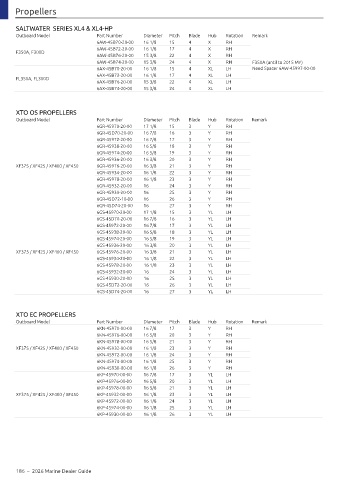

Page 188 - Yamaha Marine Zubehoer 2026

Propellers

SALTWATER SERIES XL4 & XL4-HP
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6AW-45B70-20-00 16 1/8 15 4 X RH
6AW-45B72-20-00 16 1/8 17 4 X RH
F350A, F300D
6AW-45B76-20-00 15 3/8 22 4 X RH
6AW-45B74-20-00 15 3/8 24 4 X RH F350A (until to 2015 MY)
6AX-45B70-20-00 16 1/8 15 4 XL LH Need Spacer 6AW-45997-00-00
6AX-45B72-20-00 16 1/8 17 4 XL LH
FL350A, FL300D
6AX-45B76-20-00 15 3/8 22 4 XL LH
6AX-45B74-20-00 15 3/8 24 4 XL LH

XTO OS PROPELLERS
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6GR-45970-20-00 17 1/8 15 3 Y RH
6GR-45D70-20-00 16 7/8 16 3 Y RH
6GR-45972-20-00 16 7/8 17 3 Y RH
6GR-45938-20-00 16 5/8 18 3 Y RH
6GR-45974-20-00 16 5/8 19 3 Y RH
6GR-45936-20-00 16 3/8 20 3 Y RH
XF375 / XF425 / XF400 / XF450 6GR-45976-20-00 16 3/8 21 3 Y RH
6GR-45934-20-00 16 1/8 22 3 Y RH
6GR-45978-20-00 16 1/8 23 3 Y RH
6GR-45932-20-00 16 24 3 Y RH
6GR-45930-20-00 16 25 3 Y RH
6GR-45D72-10-00 16 26 3 Y RH
6GR-45D74-20-00 16 27 3 Y RH
6GS-45970-20-00 17 1/8 15 3 YL LH
6GS-45D70-20-00 16 7/8 16 3 YL LH
6GS-45972-20-00 16 7/8 17 3 YL LH
6GS-45938-20-00 16 5/8 18 3 YL LH
6GS-45974-20-00 16 5/8 19 3 YL LH
6GS-45936-20-00 16 3/8 20 3 YL LH
XF375 / XF425 / XF400 / XF450 6GS-45976-20-00 16 3/8 21 3 YL LH
6GS-45934-20-00 16 1/8 22 3 YL LH
6GS-45978-20-00 16 1/8 23 3 YL LH
6GS-45932-20-00 16 24 3 YL LH
6GS-45930-20-00 16 25 3 YL LH
6GS-45D72-20-00 16 26 3 YL LH
6GS-45D74-20-00 16 27 3 YL LH

XTO EC PROPELLERS
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6KN-45970-00-00 16 7/8 17 3 Y RH
6KN-45976-00-00 16 5/8 20 3 Y RH
6KN-45978-00-00 16 5/8 21 3 Y RH
XF375 / XF425 / XF400 / XF450 6KN-45932-00-00 16 1/8 23 3 Y RH
6KN-45972-00-00 16 1/8 24 3 Y RH
6KN-45974-00-00 16 1/8 25 3 Y RH
6KN-45930-00-00 16 1/8 26 3 Y RH
6KP-45970-00-00 16 7/8 17 3 YL LH
6KP-45976-00-00 16 5/8 20 3 YL LH
6KP-45978-00-00 16 5/8 21 3 YL LH
XF375 / XF425 / XF400 / XF450 6KP-45932-00-00 16 1/8 23 3 YL LH
6KP-45972-00-00 16 1/8 24 3 YL LH
6KP-45974-00-00 16 1/8 25 3 YL LH
6KP-45930-00-00 16 1/8 26 3 YL LH

186 – 2026 Marine Dealer Guide
